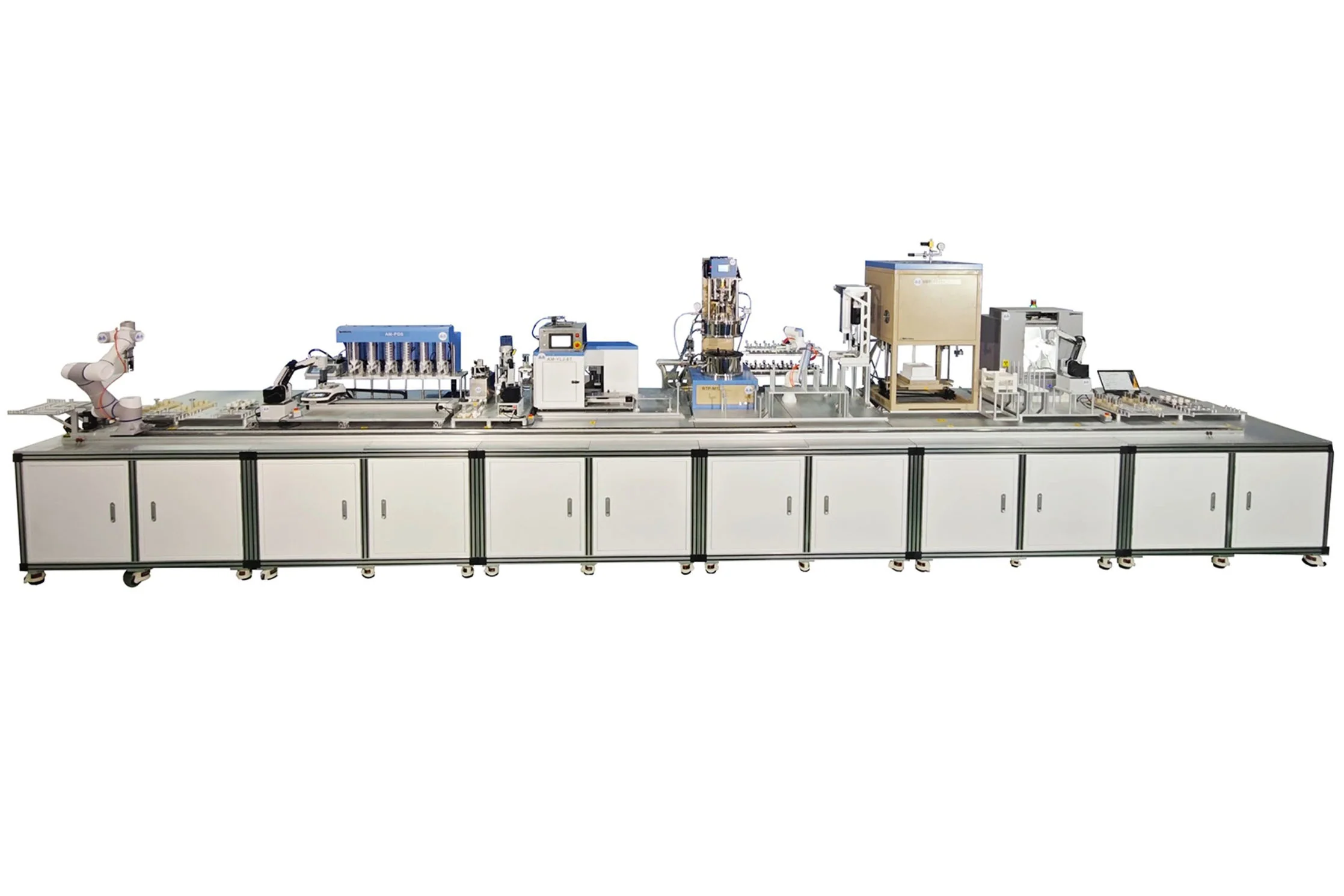

AMSP02 is an intelligent ceramic materials workstation that automates the processes, including raw materials dispensing, mixing, pelletization, and sintering based on experimental workflows. It greatly reduces manual intervention, enhancing accuracy, repeatability, and efficiency.

Power	208-240 VAC, 50/60 Hz, single phase, up to 15 kVA
Automated Powder Dispensing	Up to 6 kinds of powder materials can be dispensed into 6 containers in custom ratios · Balance Range: 20 mg to 13,000 mg · Dispensing Accuracy: ±2 mg · Minimum dispensing amount: 10 mg · Material Container Volume: 50 mL (each)
Automated Centrifugal Ball Milling/Mixing	· Number of stations: 6 · Ball Mill Jar Dimensions: Ø20 mm × 25 mm (H) · Maximum Rotation Speed: 2,000 rpm · Maximum Centrifugal Acceleration: 438 g
Automated Pellet Pressing	Automatic Loading, Die Assembly, Pressing, and Ejection · Maximum Hydraulic Pressure: 8 T · 12 Sets of Dies with Φ10 mm Core Size (Customizable at Extra Cost)
Automated Bottom-Loading Box Furnace	· Maximum Operating Temperature: 1,700 °C (<1 Hour) · Continuous Operating Temperature: 1,600 °C · Chamber Dimensions: 200 × 200 × 200 mm · Chamber Volume: 8 L · Constant Temperature Zone: 150 × 150 × 150 mm (±5 °C)
(Optional) Fully Automated Vertical Vibration Crushing/Ball Milling/Mixing	Adjustable Milling Time, Static Cooling Time, and Speed · Vibration Amplitude: Up to 16 mm · Frequency: 1,500 Cycles/Minute · Maximum Feed Size: ≤20 mm · Output Particle Size: ~0.1–5 µm (Depending on Material Properties) · Number of Samples per Run: 6
