Al2O3 - Sapphire Wafer <0001> 2"dia x 0.43mm 1SP - ALC50D043C1

Al2O3 - Sapphire Wafer <0001> 2"dia x 0.43mm 1SP - ALC50D043C1

Features:
  • Sapphire ( single crystal of Al2O3 ) is being used extensively as a substrate for III-V nitrides and for many other epitaxial films
  • Orientation: C-axis[0001]  off  M-plane(1-100) 0.2o+/-0.1o
  • Diameter: 50.8mm +/- 0.1mm
  • Thickness: 430um +/- 15 um
  • Major Flat: A-axis[11-20]+/-0.2o
  • Major Flat Length: 16mm +/- 1.0mm
  • Surface Finish: Front side: Epi- polished , Ra< 0.3 nm(by AFM); Back side: Fine ground, Ra= 0.4-1.2 um
  • TTV: <= 7um
  • Bow:<= 10 um
  • WARP<= 15um
  • TIR<= 10um
  • Polished surfaceOne side epi polished by special CMP technology
  • Package: Each wafer is packed in 1000 class clean room

Typical Properties:

  • Crystal Structure: Hexagonal. a=4.758 Angstroms c=12.99 Angstroms
  • Melting Point: 2040 degree C
  • Density: 3.97 gram/cm2
  • Growth Technique: CZ
  • Crystal Purity:  >99.99%
  • Hardness: 9 ( mohs)
  • Thermal Expansion: 7.5x10-6 (/ oC)
  • Thermal Conductivity: 46.06 @ 0 oC, 25.12 @ 100 oC, 12.56 @ 400 oC ( W/(m.K) )
  • Dielectric Constant: ~ 9.4 @300K  at A axis ~ 11.58@ 300K at C axis
  • Loss Tangent at 10 GHz: < 2x10-5  at A axis <5 x10-5  at C axis

Please click here for detail data

Related Products

Other Sapphire

GaN

 AlN template

ZnO

A-plane (11-20)

Diamond Scriber

Vacuum Pen

Wafer Containers

Film Coaters

$15.03

Original: $42.95

-65%
Al2O3 - Sapphire Wafer <0001> 2"dia x 0.43mm 1SP - ALC50D043C1

$42.95

$15.03

Al2O3 - Sapphire Wafer <0001> 2"dia x 0.43mm 1SP - ALC50D043C1

Features:
  • Sapphire ( single crystal of Al2O3 ) is being used extensively as a substrate for III-V nitrides and for many other epitaxial films
  • Orientation: C-axis[0001]  off  M-plane(1-100) 0.2o+/-0.1o
  • Diameter: 50.8mm +/- 0.1mm
  • Thickness: 430um +/- 15 um
  • Major Flat: A-axis[11-20]+/-0.2o
  • Major Flat Length: 16mm +/- 1.0mm
  • Surface Finish: Front side: Epi- polished , Ra< 0.3 nm(by AFM); Back side: Fine ground, Ra= 0.4-1.2 um
  • TTV: <= 7um
  • Bow:<= 10 um
  • WARP<= 15um
  • TIR<= 10um
  • Polished surfaceOne side epi polished by special CMP technology
  • Package: Each wafer is packed in 1000 class clean room

Typical Properties:

  • Crystal Structure: Hexagonal. a=4.758 Angstroms c=12.99 Angstroms
  • Melting Point: 2040 degree C
  • Density: 3.97 gram/cm2
  • Growth Technique: CZ
  • Crystal Purity:  >99.99%
  • Hardness: 9 ( mohs)
  • Thermal Expansion: 7.5x10-6 (/ oC)
  • Thermal Conductivity: 46.06 @ 0 oC, 25.12 @ 100 oC, 12.56 @ 400 oC ( W/(m.K) )
  • Dielectric Constant: ~ 9.4 @300K  at A axis ~ 11.58@ 300K at C axis
  • Loss Tangent at 10 GHz: < 2x10-5  at A axis <5 x10-5  at C axis

Please click here for detail data

Related Products

Other Sapphire

GaN

 AlN template

ZnO

A-plane (11-20)

Diamond Scriber

Vacuum Pen

Wafer Containers

Film Coaters

Product Information

Shipping & Returns

Description

Features:
  • Sapphire ( single crystal of Al2O3 ) is being used extensively as a substrate for III-V nitrides and for many other epitaxial films
  • Orientation: C-axis[0001]  off  M-plane(1-100) 0.2o+/-0.1o
  • Diameter: 50.8mm +/- 0.1mm
  • Thickness: 430um +/- 15 um
  • Major Flat: A-axis[11-20]+/-0.2o
  • Major Flat Length: 16mm +/- 1.0mm
  • Surface Finish: Front side: Epi- polished , Ra< 0.3 nm(by AFM); Back side: Fine ground, Ra= 0.4-1.2 um
  • TTV: <= 7um
  • Bow:<= 10 um
  • WARP<= 15um
  • TIR<= 10um
  • Polished surfaceOne side epi polished by special CMP technology
  • Package: Each wafer is packed in 1000 class clean room

Typical Properties:

  • Crystal Structure: Hexagonal. a=4.758 Angstroms c=12.99 Angstroms
  • Melting Point: 2040 degree C
  • Density: 3.97 gram/cm2
  • Growth Technique: CZ
  • Crystal Purity:  >99.99%
  • Hardness: 9 ( mohs)
  • Thermal Expansion: 7.5x10-6 (/ oC)
  • Thermal Conductivity: 46.06 @ 0 oC, 25.12 @ 100 oC, 12.56 @ 400 oC ( W/(m.K) )
  • Dielectric Constant: ~ 9.4 @300K  at A axis ~ 11.58@ 300K at C axis
  • Loss Tangent at 10 GHz: < 2x10-5  at A axis <5 x10-5  at C axis

Please click here for detail data

Related Products

Other Sapphire

GaN

 AlN template

ZnO

A-plane (11-20)

Diamond Scriber

Vacuum Pen

Wafer Containers

Film Coaters

You may also like

-65%NEW
Thumbnail 1

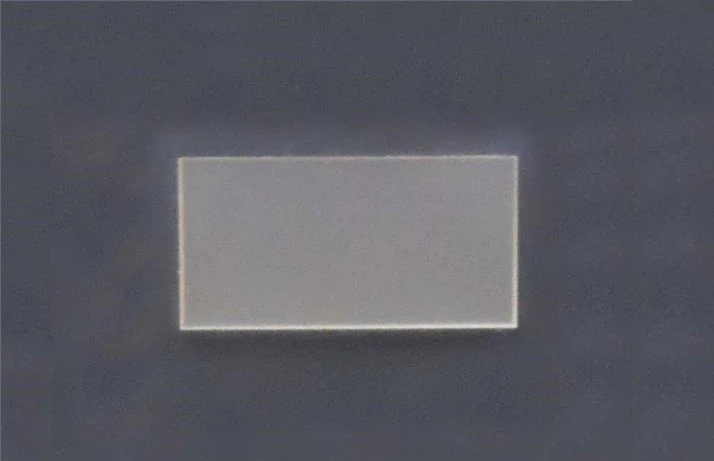

Al2O3 - Sapphire Wafer, C-plane <0001>, 10x5x1.0mm, 1 sp
