Dual Layer Cold Trap with Condensing Coils - KF40CCT

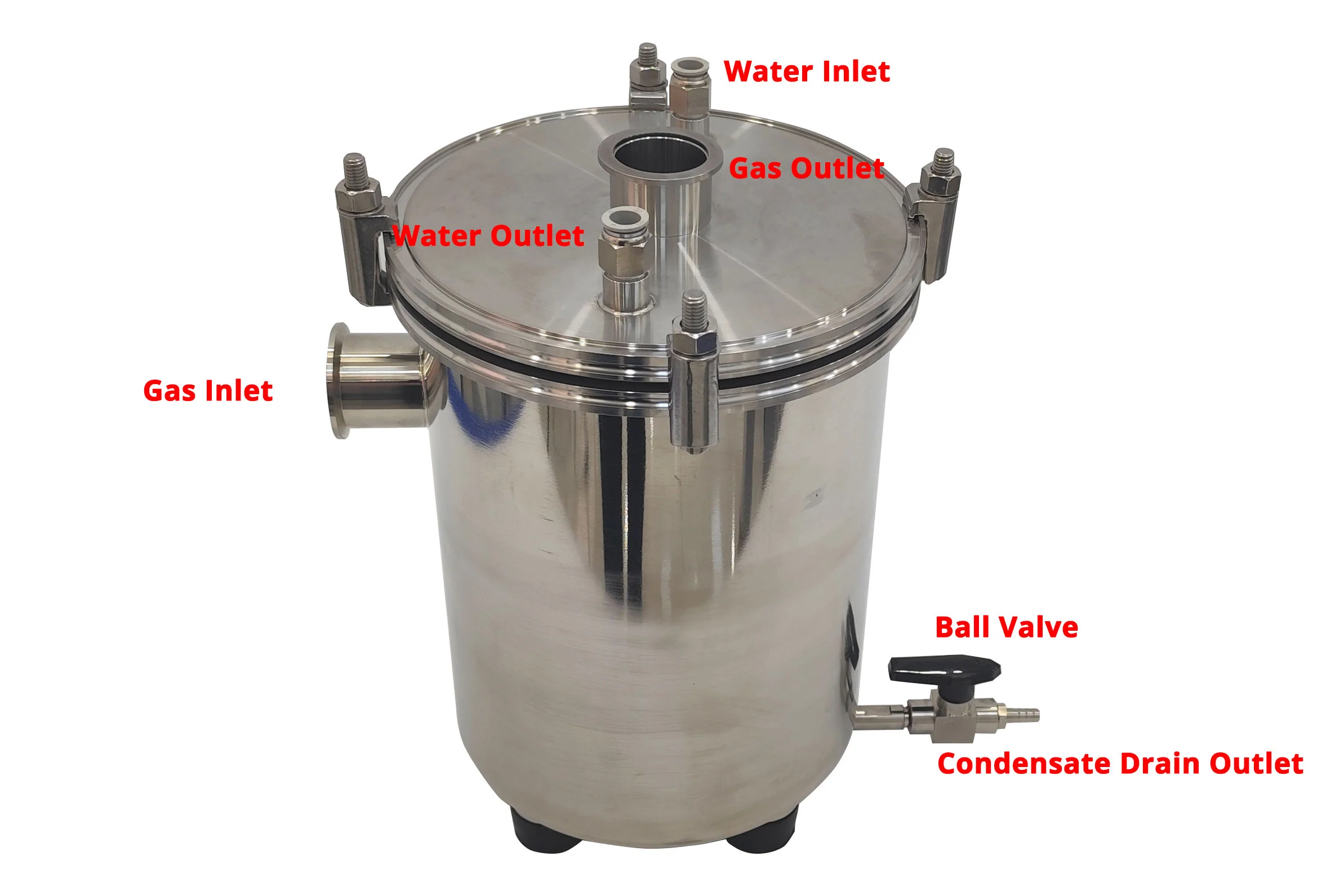

SPECIFICATIONS
Features:
|
-
Material: 316L stainless steel
-
Structure: Double-wall structure
-
Sealing Method: Inner chamber, outer chamber, and top cover sealed with LF flange
-
Gas Inlet: KF40 port on the outer chamber
-
Gas Outlet: KF40 port on the top flange cover
-
Cooling Water Ports: Two water ports on the top flange cover, including one water inlet and one water outlet
-
Internal Cooling Structure: Two copper tubes installed inside the flange; each copper tube connector is connected to a spiral-wound copper tube
-
Condensate Drain: ⌀8 mm hose barb condensate outlet at the bottom exterior of the chamber
-
Drain Control: Ball valve for open/close control
|
| Dimensions |
- Outer Chamber: ⌀240 × 380 mm
- Inner Chamber: ⌀220 × 270 mm
- Copper Coil: ⌀160 × 140 mm
- Weight: ~17kg
|
