CR2032 Case with One Side Kapton Window (10mm) for In-situ X- Ray Analysis - 5 set/pack-CR2032KAP

CR2032 Case with One Side Kapton Window (10mm) for In-situ X- Ray Analysis - 5 set/pack-CR2032KAP

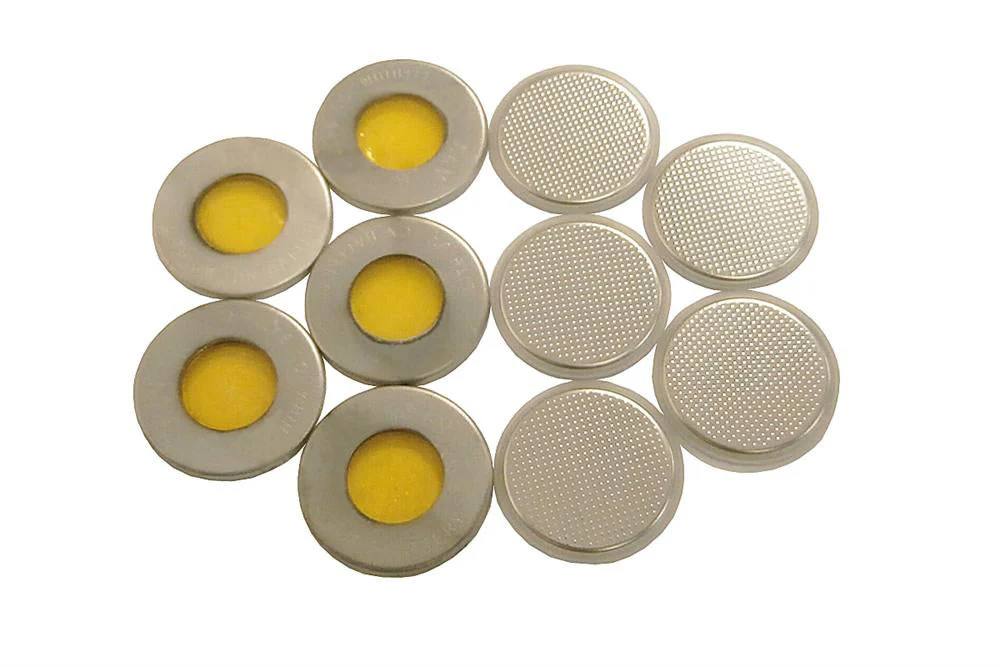

EQ-CR2032-Kapton are special CR-2032 coin cell cases with 10mm Kapton windows (5 set/pack). The window is designed for in-situ X-Ray analysis of battery material phase variations during charging and discharging.
  • 5 set of CR2032 casing per package
  • Kapton window for X-Ray beam penetration.
  • PP (Polypropylene) sealing O-ring.
  • Compatible with MTI's MSK-110 crimper


Specifications
Kapton window thickness 0.18mm
Coating The positive side of the casing is coated with aluminum
Al coating thickness < 0.01mm
Cell Assembling Structure & Instruction Manual
Application note
  • In order to reduce X-ray photons loss and get high resolution of X-ray signal for battery, please use carbon-based substrate as current collector instead of Al or Cu foil.



  • You may use lab press and dry pressing die below to prepare an electrode pellet instead of using electrode coated Al or Cu foil.







$125.00
CR2032 Case with One Side Kapton Window (10mm) for In-situ X- Ray Analysis - 5 set/pack-CR2032KAP—
$125.00

More Images

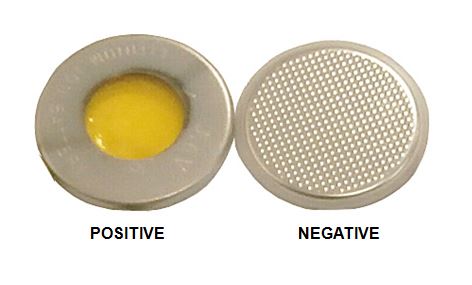

CR2032 Case with One Side Kapton Window (10mm) for In-situ X- Ray Analysis - 5 set/pack-CR2032KAP - Image 2
