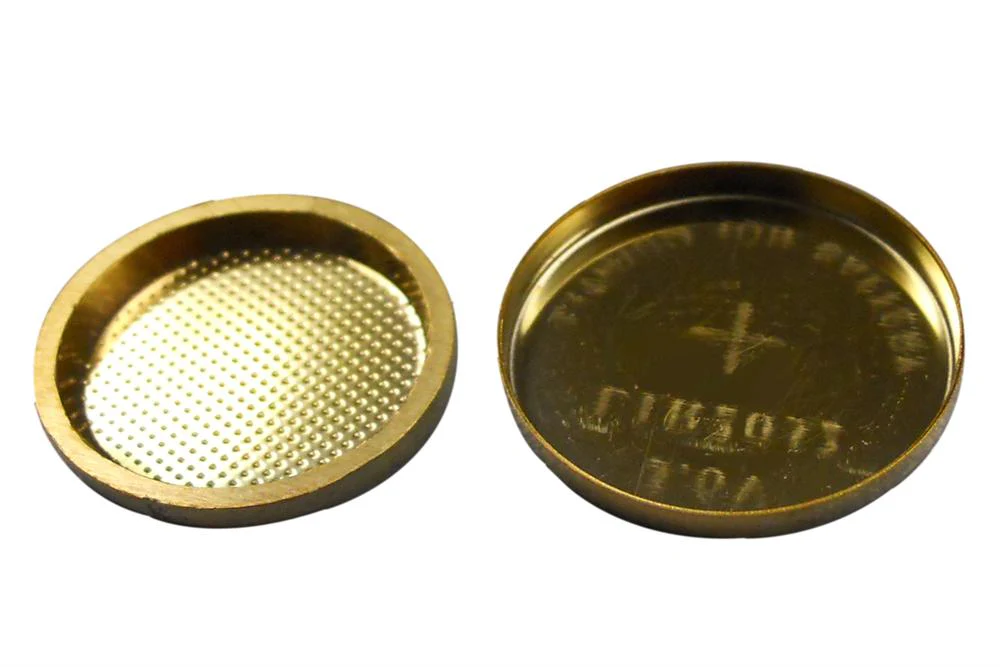

Gold-Coated SS304 CR2032 Button Cell Cases (20d x 3.2mm) with (1 pair with O-ring)-CR2032CASE-G
HomeStore

Gold-Coated SS304 CR2032 Button Cell Cases (20d x 3.2mm) with (1 pair with O-ring)-CR2032CASE-G

Gold-Coated SS304 CR2032 Button Cell Cases (20d x 3.2mm) with (1 pair with O-ring)-CR2032CASE-G

  • One pair of CR2032 button cells case, made of 304 stainless steel with sealing O-ring.
  • 300-500A thick Gold coating inside case by plasma sputtering coater

  • Click the picture above to view the cases before coating and after coating
  • 10 pcs min. the order required reducing setup cost

Specifications
Material
  • Stainless Steel 304 Case
  • Inner sides are gold coated to improve anti-corrosive resistance
  • Polypropylene Sealing Gasket

Application
  • It excellent for developing new rechargeable battery and battery electrodes. Such gold film was prepared by using Plasma Sputtering Coater with Vacuum Pump & Gold Target, please click the picture to see detail product information.
Options
  • Aluminum, Platinum, Silver coating on coin cell case inside are available upon request
  • Please click pictures below to find Gold coated spacer and wave spring



$5.25

Original: $15.00

-65%
Gold-Coated SS304 CR2032 Button Cell Cases (20d x 3.2mm) with (1 pair with O-ring)-CR2032CASE-G—

$15.00

$5.25

Gold-Coated SS304 CR2032 Button Cell Cases (20d x 3.2mm) with (1 pair with O-ring)-CR2032CASE-G

  • One pair of CR2032 button cells case, made of 304 stainless steel with sealing O-ring.
  • 300-500A thick Gold coating inside case by plasma sputtering coater

  • Click the picture above to view the cases before coating and after coating
  • 10 pcs min. the order required reducing setup cost

Specifications
Material
  • Stainless Steel 304 Case
  • Inner sides are gold coated to improve anti-corrosive resistance
  • Polypropylene Sealing Gasket

Application
  • It excellent for developing new rechargeable battery and battery electrodes. Such gold film was prepared by using Plasma Sputtering Coater with Vacuum Pump & Gold Target, please click the picture to see detail product information.
Options
  • Aluminum, Platinum, Silver coating on coin cell case inside are available upon request
  • Please click pictures below to find Gold coated spacer and wave spring



Product Information

Shipping & Returns

Description

  • One pair of CR2032 button cells case, made of 304 stainless steel with sealing O-ring.
  • 300-500A thick Gold coating inside case by plasma sputtering coater

  • Click the picture above to view the cases before coating and after coating
  • 10 pcs min. the order required reducing setup cost

Specifications
Material
  • Stainless Steel 304 Case
  • Inner sides are gold coated to improve anti-corrosive resistance
  • Polypropylene Sealing Gasket

Application
  • It excellent for developing new rechargeable battery and battery electrodes. Such gold film was prepared by using Plasma Sputtering Coater with Vacuum Pump & Gold Target, please click the picture to see detail product information.
Options
  • Aluminum, Platinum, Silver coating on coin cell case inside are available upon request
  • Please click pictures below to find Gold coated spacer and wave spring
