Desk-top Semi-Auto Grooving Machine for 4680 - 46120 or 50100 Cylinder Cell Only - MSK-500-L

Desk-top Semi-Auto Grooving Machine for 4680 - 46120 or 50100 Cylinder Cell Only - MSK-500-L

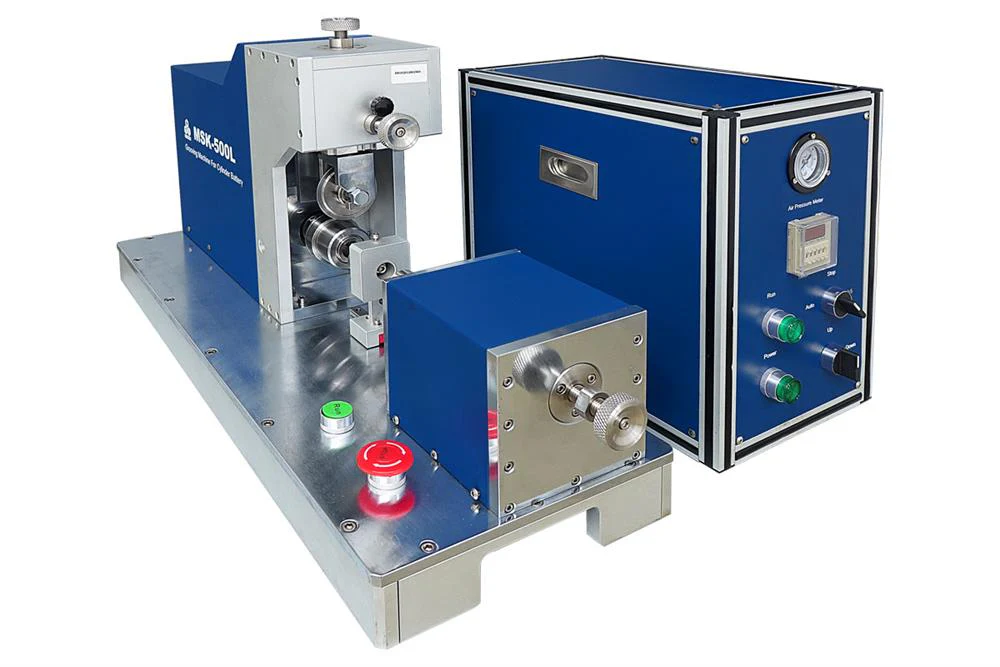

MSK-500-L is a semi-auto grooving machine specifically designed for grooving 50100 cylindrical cases. It also can be modified into a grooving machine for 4680 - 46120 cylindrical cells.

SPECIFICATIONS:
Working Voltage
  • 208 - 240 V AC, 50/60Hz Single Phase
  • AC 110V version is available via a transformer
Max. Power Consumption
  • 200W
Air Pressure
  • >0.5 MPa is required (Air Compressor is not included, please click here to order)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
  •   pic1  pic2
Casing Compatibility
  • Cylinder Cell 50100
  • Cylinder Cell 4680 - 46100
  • Cylinder Cell 46100 - 46120
  • Grooving die sets required for different types of cylinder cells
Grooving Dimensions
  • Depth: 0.8 - 2.0 mm
  • Width:
    • Standard 1.2 mm
    • 0.9 - 1.5 mm
Grooving Accuracy
  • +/- 0.1 mm
Grooving Blade Durability
  • >100,000 times
Productivity
  • 400 grooving cylindrical cells per hour
Compliance
  • CE Certified
  • Patent 201120464651.8 for the Cylindrical Cell Grooving Machine MSK-500-L since July 2012.
Application Notes
  • Customized die for other cylindrical cell types is available upon request
  • It is necessary to seal the cap of the cylindrical case by using the MSK-510 sealing machine after grooving the opening end
  • Each type of cylinder cell can only be grooved specifically by certain models of this equipment. Please select the type of cylinder cell in the Product Options dropbox to check the model number and price for the corresponding grooving die of each cylinder cell type
  • Please check the chart below to order the cylindrical cases
Crimping Die for Description (click to view details) Case Dimensions
EQ-Lib-50100 5 pcs 50100 cylindrical case





$4,373.25

Original: $12,495.00

-65%
Desk-top Semi-Auto Grooving Machine for 4680 - 46120 or 50100 Cylinder Cell Only - MSK-500-L—

$12,495.00

$4,373.25
