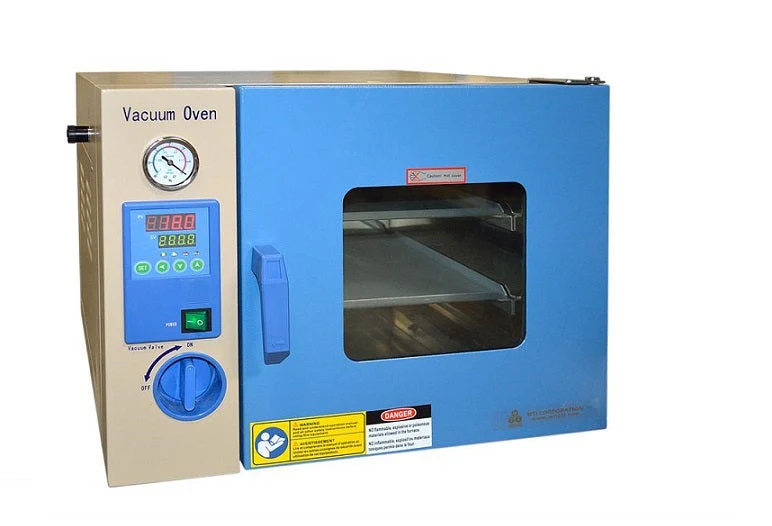

25 L 200 °C Vacuum Oven (12" x 12" x 11") - DZF-6020 series

25 L 200 °C Vacuum Oven (12" x 12" x 11") - DZF-6020 series

25 L 200 °C Vacuum Oven (12" x 12" x 11") - DZF-6020 series

DZF-6020 is a NRTL certified vacuum oven with a KF25 vacuum port, a pressure gauge, and a vacuum isolation valve.

The maximum working temperature is 200 °C.

The max vacuum level is <1e-2 torr at room temperature with a roughing pump.

SPECIFICATIONS:

Chamber and Door	The chamber is structured with stainless steel and welded to bracing pieces The Inner Chamber size: 300 mm x 295 mm x 275 mm (12 x 12 x 11", 25 Liter, 0.91 cu-ft) A good vacuum sealing is achieved by the silicone gasket and the positive latch door The double layers observation window consists of 1/2" tempered glass and a transparent polycarbonate shield Two stainless steel shelves are included to facilitate process efficiency Heights of each layer separated by the shelves (from the bottom to the top): 60mm, 110mm, 105mm An adjustable leak valve for venting is included KF25 Port on the back of the oven for connecting with the vacuum pump
Vacuum Level	Ultimate pressure with the 240 L/m mechanical pump only: < 50 mTorr (at 200°C), 8 mTorr at R.T. after bake-out Ultimate pressure with 33 L/s turbopump: 5E-5 Torr (at R.T.), 1 mTorr at 200°C The vacuum pump is not included. Please order separately Double Stage Rotary Vane Vacuum Pump Recommended. Please click the pictures below to order the pump
Working Voltage	AC110V 50/60 Hz, NRTL certified	AC208-240V, 50/60Hz, CE complied
Input Power	700 W
Working Temperature	RT+10 ~ 200°C for the continuous use
Temperature Controller	Single-point temperature setting Built-in over-temperature protection PID precise temperature control Temperature control accuracy: +/-1 °C Temperature uniformity: +/-10 °C @ 100 °C, 25" Hg at center 6" x 6" area only
Fittings	KF25 port is built-in for connecting a vacuum pump
Standard Package	KF-25 Quick Clamp with Rubber O-Ring, 1 set 10A Fuse 1 pc
Electric wire feedthrough (Optional)	An 4-pin electric feedthrough is installed in the back of oven at which provides a direct electric connection under the vacuum.
Optional Accessories	Please order KF-D25 Flexible Stainless Steel Vacuum Hose (Bellows), 1 meter at an extra cost Please order an extra KF-25 Quick Clamp with Rubber O-Ring KF-40 to KF 25 adapter is also available by clicking the left picture to order
Attention	It's normal that the SS chamber wall will be slightly deformed and lose its shiny surface during high-temperature operation under a vacuum. However, this would not affect any performance Please do not place the sample on the chamber bottom directly This product is not made by MTI but distributed for Shanghai Yiheng Manufacturer

Select Voltage & Certification

From $699.30

Original: $1,998.00

-65%

25 L 200 °C Vacuum Oven (12" x 12" x 11") - DZF-6020 series—

$1,998.00

$699.30

More Images

25 L 200 °C Vacuum Oven (12" x 12" x 11") - DZF-6020 series - Image 2

25 L 200 °C Vacuum Oven (12" x 12" x 11") - DZF-6020 series

DZF-6020 is a NRTL certified vacuum oven with a KF25 vacuum port, a pressure gauge, and a vacuum isolation valve.

The maximum working temperature is 200 °C.

The max vacuum level is <1e-2 torr at room temperature with a roughing pump.

SPECIFICATIONS:

Chamber and Door	The chamber is structured with stainless steel and welded to bracing pieces The Inner Chamber size: 300 mm x 295 mm x 275 mm (12 x 12 x 11", 25 Liter, 0.91 cu-ft) A good vacuum sealing is achieved by the silicone gasket and the positive latch door The double layers observation window consists of 1/2" tempered glass and a transparent polycarbonate shield Two stainless steel shelves are included to facilitate process efficiency Heights of each layer separated by the shelves (from the bottom to the top): 60mm, 110mm, 105mm An adjustable leak valve for venting is included KF25 Port on the back of the oven for connecting with the vacuum pump
Vacuum Level	Ultimate pressure with the 240 L/m mechanical pump only: < 50 mTorr (at 200°C), 8 mTorr at R.T. after bake-out Ultimate pressure with 33 L/s turbopump: 5E-5 Torr (at R.T.), 1 mTorr at 200°C The vacuum pump is not included. Please order separately Double Stage Rotary Vane Vacuum Pump Recommended. Please click the pictures below to order the pump
Working Voltage	AC110V 50/60 Hz, NRTL certified	AC208-240V, 50/60Hz, CE complied
Input Power	700 W
Working Temperature	RT+10 ~ 200°C for the continuous use
Temperature Controller	Single-point temperature setting Built-in over-temperature protection PID precise temperature control Temperature control accuracy: +/-1 °C Temperature uniformity: +/-10 °C @ 100 °C, 25" Hg at center 6" x 6" area only
Fittings	KF25 port is built-in for connecting a vacuum pump
Standard Package	KF-25 Quick Clamp with Rubber O-Ring, 1 set 10A Fuse 1 pc
Electric wire feedthrough (Optional)	An 4-pin electric feedthrough is installed in the back of oven at which provides a direct electric connection under the vacuum.
Optional Accessories	Please order KF-D25 Flexible Stainless Steel Vacuum Hose (Bellows), 1 meter at an extra cost Please order an extra KF-25 Quick Clamp with Rubber O-Ring KF-40 to KF 25 adapter is also available by clicking the left picture to order
Attention	It's normal that the SS chamber wall will be slightly deformed and lose its shiny surface during high-temperature operation under a vacuum. However, this would not affect any performance Please do not place the sample on the chamber bottom directly This product is not made by MTI but distributed for Shanghai Yiheng Manufacturer

Product Information

Shipping & Returns

Description

DZF-6020 is a NRTL certified vacuum oven with a KF25 vacuum port, a pressure gauge, and a vacuum isolation valve.

The maximum working temperature is 200 °C.

The max vacuum level is <1e-2 torr at room temperature with a roughing pump.

SPECIFICATIONS:

Chamber and Door	The chamber is structured with stainless steel and welded to bracing pieces The Inner Chamber size: 300 mm x 295 mm x 275 mm (12 x 12 x 11", 25 Liter, 0.91 cu-ft) A good vacuum sealing is achieved by the silicone gasket and the positive latch door The double layers observation window consists of 1/2" tempered glass and a transparent polycarbonate shield Two stainless steel shelves are included to facilitate process efficiency Heights of each layer separated by the shelves (from the bottom to the top): 60mm, 110mm, 105mm An adjustable leak valve for venting is included KF25 Port on the back of the oven for connecting with the vacuum pump
Vacuum Level	Ultimate pressure with the 240 L/m mechanical pump only: < 50 mTorr (at 200°C), 8 mTorr at R.T. after bake-out Ultimate pressure with 33 L/s turbopump: 5E-5 Torr (at R.T.), 1 mTorr at 200°C The vacuum pump is not included. Please order separately Double Stage Rotary Vane Vacuum Pump Recommended. Please click the pictures below to order the pump
Working Voltage	AC110V 50/60 Hz, NRTL certified	AC208-240V, 50/60Hz, CE complied
Input Power	700 W
Working Temperature	RT+10 ~ 200°C for the continuous use
Temperature Controller	Single-point temperature setting Built-in over-temperature protection PID precise temperature control Temperature control accuracy: +/-1 °C Temperature uniformity: +/-10 °C @ 100 °C, 25" Hg at center 6" x 6" area only
Fittings	KF25 port is built-in for connecting a vacuum pump
Standard Package	KF-25 Quick Clamp with Rubber O-Ring, 1 set 10A Fuse 1 pc
Electric wire feedthrough (Optional)	An 4-pin electric feedthrough is installed in the back of oven at which provides a direct electric connection under the vacuum.
Optional Accessories	Please order KF-D25 Flexible Stainless Steel Vacuum Hose (Bellows), 1 meter at an extra cost Please order an extra KF-25 Quick Clamp with Rubber O-Ring KF-40 to KF 25 adapter is also available by clicking the left picture to order
Attention	It's normal that the SS chamber wall will be slightly deformed and lose its shiny surface during high-temperature operation under a vacuum. However, this would not affect any performance Please do not place the sample on the chamber bottom directly This product is not made by MTI but distributed for Shanghai Yiheng Manufacturer
