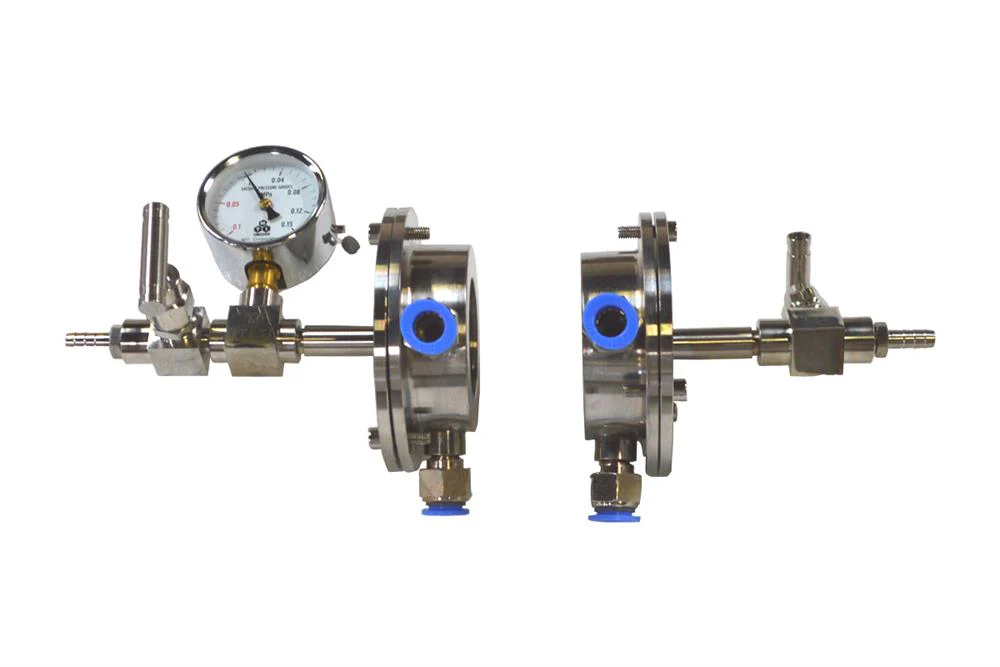

Water Cooled Sealing Flange for 60mm dia.Tube - FG-60WC
This is a pair of sealing flange with SS water cool tubing & valve for OD 60 mm diameter processing tube. If you cannot use a ceramic block in two ends of tube, you must use the water cool tubing to keep flange cool (otherwise silicone o-ring may get damage)
- Made of Stainless Steel with double high-temperature silicon O-rings on the flange.
-
Stainless steel needle valve with 1/4" pipe adaptor.
-
The assembly kit will seal one end of 57-60 mm diameter ceramic and quartz tube.
-
Vacuum meter is installed in one side of flange.
Vacuum Level:
- 10E-2 torr by a mechanical pump
- 10E-5 torr by a small turbopump and
- 10-6 torr by hi-speed turbopump
- MTI Thermolysis Water Cool System is an ideal tool for supplying cooling water to this flange set, please click the picture below for more detailed products information.
-
Warning: For liability considerations, MTI does not recommend or endorse the use of any toxic, flammable or corrosive gases with our flange assemblies. Please contact us with any concerns.
Please click the picture to see the dimensionsSealing Flange Assembly for 1"-11" Processing Tubes
$995.00
