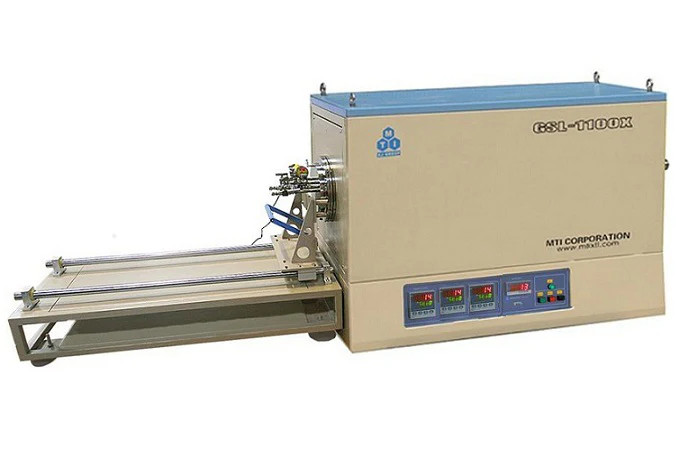

Three Zones CVD Tube Furnace with 8.5" Quartz Tube & Slidable Flange (1100C) - GSL-1100X-8.5-III-SR

• Double-wall steel casing with forced air cooling.
• Two cooling fans inside to keep the temperature of outside case < 70 ºC
• High purity alumina fibrous insulation for max energy saving

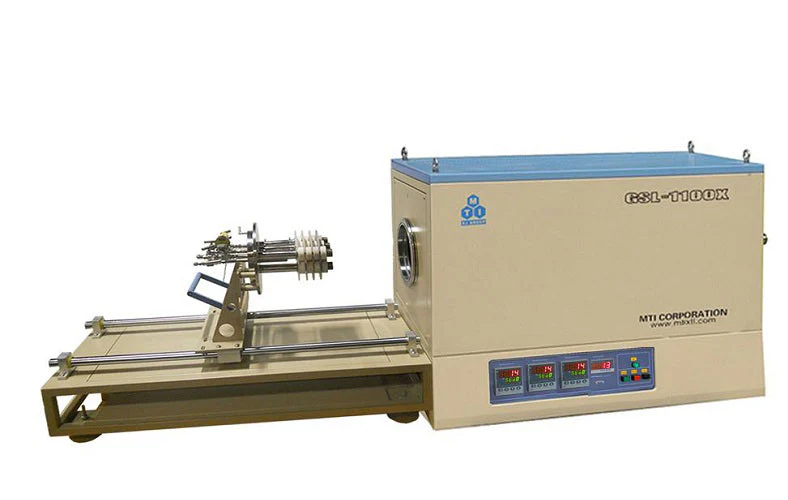

• One sliding rail to support flange to load sample with ease
• Three heating zone to achieve a longer constant temperature zone or a certain temperature gradient

• 8.5" O.D x 8.2" I.D x 51" Length
• One quartz tube is included, and the spare tube is available as an option ( click picture below to order )

• Max. heating temperature: 1100°C
• Continuous working temperature: 400 -1000°C
• Max. heating/cooling rate: 10°C/min

• Total heating zone length 900 mm (36")
• Three zones: 300 mm + 300 mm + 300mm (12" per zone)
• Constant temperature zone: 500 mm (if three zones are in the same temperature)

• Three precision temperature controller with PID function and 30 segments programmable
• One extra temperature monitor is built in to shut down power when temperature out of control by accident
• Double K type thermal couple installed.
• Temperature accuracy: +/-1°C
• Software and PC interface module is available at extra cost
• Eurotherm 3000 temp. controllers with +/- 0.1 oC accuracy are available upon request

   Optional: PC interface & software Eurotherm temp. controllers

• Vacuum sealed stainless steel flanges with double high-temperature silicone O-ring are included to achieve high vacuum (Usually 10-2 torr by mechanical pump and 10-4 torr by molecular pump ). The vacuum pump is not included
• The right-side flange is hinge-type and KF25 vacuum port. KF25 Vacuum Right-Angle Valve and 1.2 meters long KF-40 Flexible Stainless Steel Vacuum Hose ( Bellows ), are included. One 1/4" diameter feedthrough port is built-in one flange for insert a thermal couple to calibrate furnace temperature. ( please order 36" length x 1/4"dia K type
  thermal couple to insert the feedthrough at the related product or click underlined )
  • thermal couple to insert the feedthrough at the related product or click underlined )
  • One quartz block is included, which must put the right end of the tube to block heat radiation
• The left-side flange is installed on the slidable table to make moving easy. There is five stainless steel feed though pipes and needle valve are installed on the flanges to feed multi-CVD gases.
• One quartz block is included, which must put the right end of the tube to block heat radiation
• The left-side flange is installed on the slidable table to make moving easy. There is five stainless steel feed though pipes and needle valve are installed on the flanges to feed multi-CVD gases.
• 4 pcs quartz plate is built-in left side flange for the thermal block is built in left-side flange. Please use a recirculating water chiller for water cooling to save the environment ( click underlined to order )

Right side flange  Left side flange Sliding flange

• CE Certified
• NRTL or CSA certification is available upon request

• Tube furnaces with quartz tubes are designed for use under vacuum and low pressure < 0.2 bar / 3 psi / 0.02 MPa
• Attention: Due to the high-pressure gas output from the gas cylinder, it is necessary to install the gas pressure regulator with it to reduce the output pressure, avoid overpressurizing the furance chamber and ensure a safe operation. Click here to learn the installation of a gas regulator.
• Vacuum limit definition for all quartz tube furnaces: * Vacuum pressures may only be safely used up to 1000°C
• The flow rate for gases should be limited to<200 SCCM (or 200ml/min) for reducing thermal shocks to the tube.
