Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK

Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK

GSL-1100X-SK is a compact rocking quartz tube furnace (1~2" optional ), which is designed to stir samples during heating or melting to get a more uniform reaction. The rocking stage can set rocking frequency and time for automatically running. It is a useful tool for the preparation of thermoelectric material and growing 2D crystals.
SPECIFICATIONS

Furnace Structure
  • Energy-saving high purity Al2O3 fibrous insulation liner
  • Stainless steel shells with adjustable height

Power
  • AC 110V single-phase or AC 220V single phase
  • (Please select the tube size and the rated voltage in the options bar)
  • 1.2KW


Working Temperature
  • Max. Temperature: 1100 °C (< 1 hr)
  • Continuous working temperature: 1000 °C
  • Max. Heating Rate: 10°C /min

Temperature Distribution

Heating Zone
  • Heating Zone Length: 12" (300mm)
  • Constant Temperature Zone: 3.1" (80mm)



Temperature Controller
  • PID automatic control and auto-tune function.
  • 30 programmable segments for precise thermal processing.
  • Built-in protection for the over-heated and broken thermocouple.
  • Temperature Accuracy: +/- 1 °C.
  • K type thermocouple.


Processing Tube
  • 1" O.D x 0.87" I.D x 24" L Quartz tube or 2.0" O.D x 1.75" I.D x 24" L-quartz tube
  • (Please select the tube size and the rated voltage in the options bar)
  • Two fibrous ceramic tube blocks are included for blocking heat radiation generated from the tube center.



Vacuum Flange

Two choices of stainless steel flange with vacuum gauge and valves
  • 2" default flange with 1/4'' Barbed fittings, 1/4'' tube feedthrough port (for 1/4" O.D thermocouple insert) and a KF25 vacuum portclick bottom right picture to see details )
  • 1" flange has no thermocouple insert ( click the bottom left picture to see details )

    1" Flange Set  2" Flange Set
Fitting Ports
  • Both flanges will come standard with 3/8" barbed hose fittings
  • In order to increase the throughput and achieve a high vacuum, you may replace the standard barbed hose fitting with the KF25 adapter (please click the underline to order).
  • For supplying high-pressure gas, you may replace the standard barbed hose fitting with the 304SS 1/4" Swagelok® Tube Fitting x 1/4" BSPP Male Connector (please click the underline to order).

Vacuum Pressure (optional)
  • 50 m-torr can be achieved by a mechanical pump
  • 10^-5 torr can be reached by turbopump
  • Please click the picture below to order a vacuum pump.


Pressure Measurement
  • Mechanical Vacuum Gauge (included as standard accessory), which measures within a pressure range of -0.1 to 0.15Mpa.

Rocking Station
  • DC motor, 40W
  • LCD digital display with adjustable speed from 10 - 70 RPM
  • Rocking angle: 9º max.
  • Timer: 1-1199min or continuous running
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.



Select Tube size and voltage
From $1,399.30

Original: $3,998.00

-65%
Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK—

$3,998.00

$1,399.30

More Images

Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK - Image 2

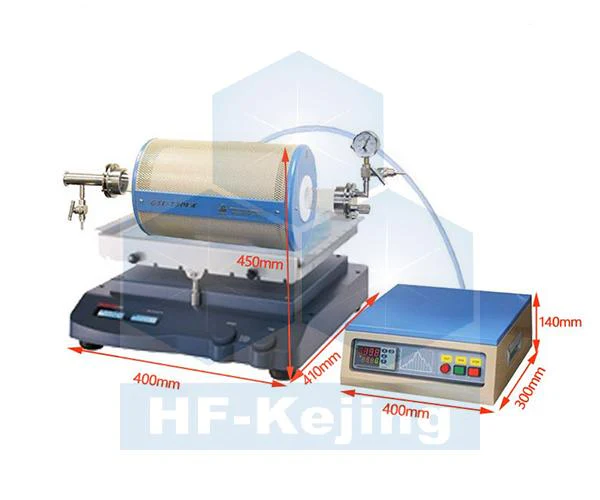

Rocking Tube Furnace with Quartz Tube & Vacuum Flange (Optional 1-2" ) - GSL1100XSK - Image 3
