KSL-1100X-HV is a compact high vacuum crucible melting furnace designed for melting noble metals such as Al, Au, Ag, Cu, Li, Mg under a vacuum environment up to 10^-6 Torr and heating temperature up to 1100ºC, which can also be used as the annealing and sintering furnace for material research. A 30-segment programmable temperature controller is built-in with +/- 1ºC accuracy.
Note:  Since May 20, one cooling fan has been added to the top of the furnace to cool the flange better
Specifications:
   Features
  • Heavy-duty heating elements for long-term service with 1100ºC max
  • 2" quartz tube with CF flange and valve for high-vacuum up to 10- 6 torr  ( turbopump required)
  • Programmable temperature controller with +/- 1ºC accuracy
   Power
  • 110VAC (50/60Hz), single phase
  • 1500W Max. 15A breaker required
  • Power cable and plug included
   Processing Tube

  • OD:  50mm ±0.5mm (1.97")
  • ID:  44mm ±0.5mm (1.73")
  • Length: 263 mm
  • One flat-opened end  and one closed-end
   Vacuum Flange

  • SS 316 flange
  • Fluro elastomer (FKM) O-ring
  • Two ports, KF-16 and KF-40, are built into the flange
  • One KF-40 Vacuum Valve  is included in the standard package (Pic.2)
  • Optional: KF-16 could be connected to the Inficon Pirani gauge
     (Pic.3)
  • Optional: KF-40 could be connected to a turbo pump (Pic.4 and 5)

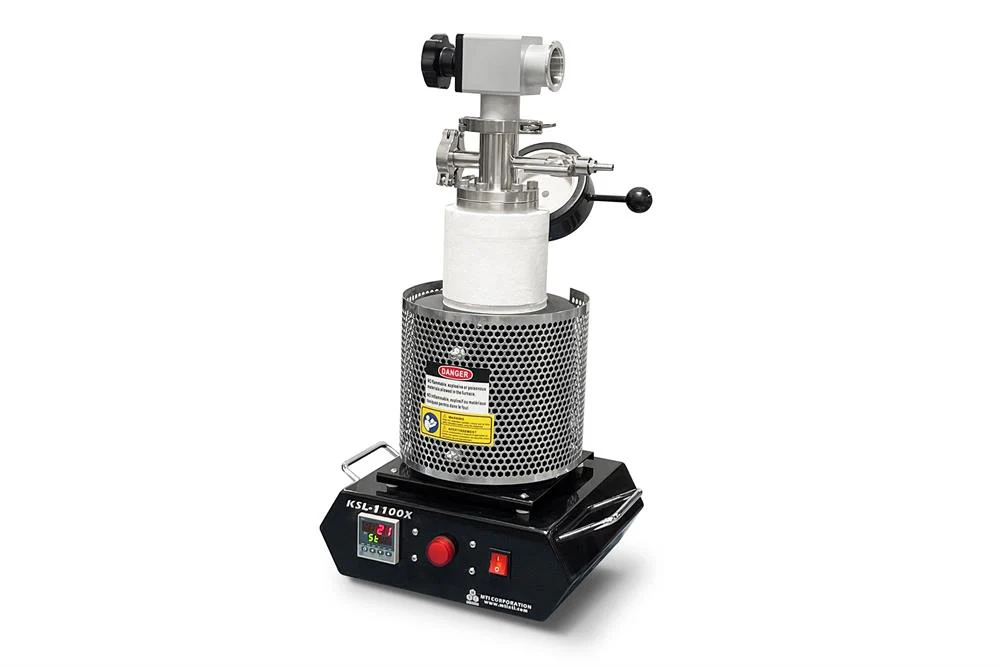

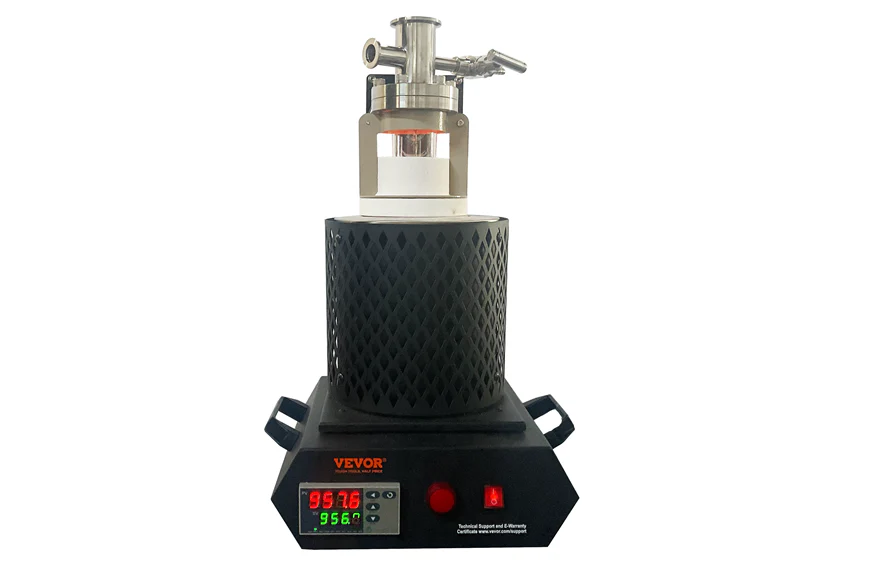

           Pic.1  Pic.2 Pic.3   Pic.4   Pic.5
   Temperature Controller

  • Precise 30-segment programmable temperature controller
  • PID and Autotune as well as overheating protection
  • +/- 1ºC accuracy
   Working Temperature

  • Continuous:   1000 ºC
  • Max:              1100 °C < 1 hr.
  • For working temperatures over 800ºC, a quartz thermal block is required at an extra cost
  • Mounting a quartz thermal block inside the processing tube



   Vacuum & Optional
  • 7.4E-6 hPa (5.6E-6 torr), unloaded, room temperature
  • 4.6E-6 hPa (3.5E-6 torr) after bakeout
  • This tube and flange kit is designed for inserting MTI hybrid lab furnace as picture # left

   Compliance
  • CE CertifiedAn
  • NRTL certificate is available at the extra cost

Select Voltage
From $3,998.00
