Kudom Solid State Relay KSI380D40L 1-Phase AC Output
Zero switching or instant-on
SCR output for heavy industrial loads
DC input
DBC substrate for superior thermal performance
Opto-isolation 4000VACrms
LED indication
Internal RC/MOV and TVS protection circuit as option

Specification:

ItemCategory
 Solid State Relay
Brand Kudom
Dimensions
 2.30 inch(L)  x 1.80 inch(W)  x 0.87 inch(H)
Net weight 85g
Compliance CE UR
Control Voltage DC Control 3-32VDC
Temp. Range -30C to 80C
Load Current 40 A
Application HOW TO TEST A SOLID STATE RELAY
How to test on
MTI Furnace
  1. Disconnect the heating element,
  2. Open the power of the controller, the output signal lightly on.
  3. Start a program on the controller, the output signal blinking.
Or if you directly test the two pin of output(Max. 380V) ,it should not be connected unless you have input voltage.
Another case if you just open the power, if the output signal bright light, it means SSR failed.
$22.75

Original: $65.00

-65%
Kudom Solid State Relay KSI380D40L 1-Phase AC Output - FA-KSI380D40L—

$65.00

$22.75

More Images

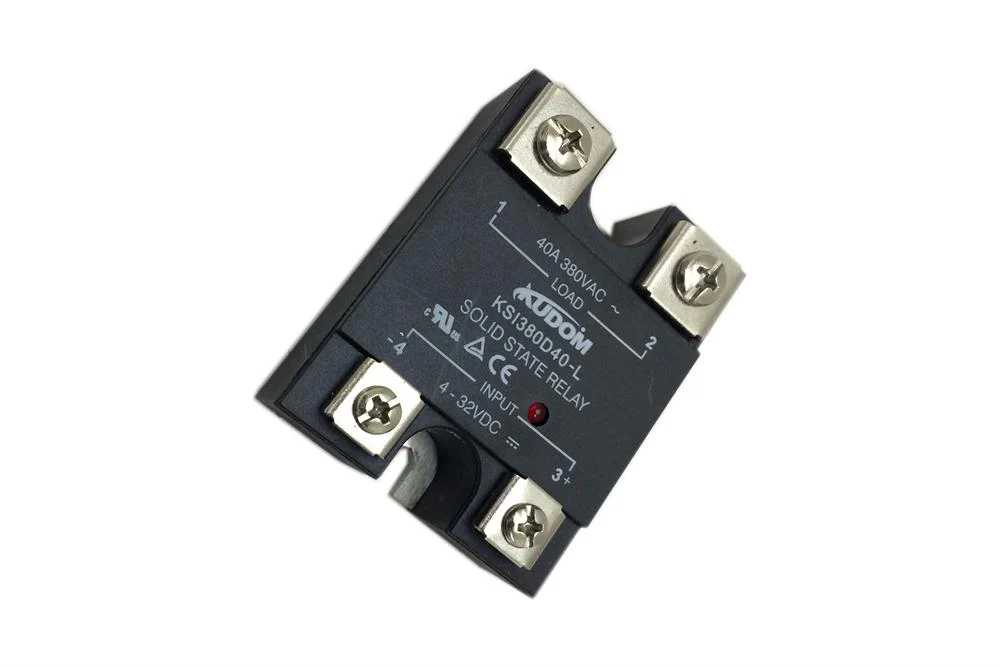

Kudom Solid State Relay KSI380D40L 1-Phase AC Output - FA-KSI380D40L - Image 2
