Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C

EQ-MSK-700C is customized and manually operated large cup forming machine with Max/ 600 x 600 mm pouch die , which is designed for making large pouch cell in battery research lab.

SPECIFICATIONS:

Features	Precision mechanism to ensure cup forming with resolution +/- 0.1 mm Manual operation with an optical sensor for full protection Product yield may reach 5 - 8 pcs /min
Pressing Platen & Die	Effective pressing Area: 750 L x 600 W Pressing Die: Not included, but available based on customer request. Please provide a engineering die drawing before purchase
Power Requirement	208 - 220VAC, Single phase, 50/60Hz 2KW 110V Version is available upon request
Air Requirement	100 PSI air compressor is required ( not included )
Max. Cup Depth to Punch	< 8.0 mm within single cup 420 x 600mm
Max. Punching Pressure	30 Metric Tons
Production Yield	5 - 8 pcs/min dependent on operator experience
AL Laminated Film	Available upon request
Optional & Upgrade	Roll to Roll automatic processing device is available upon request at extra cost You may order a larger die cutter and vacuum seal to seal the large pouch cell.
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost

$15,743.00

Original: $44,980.00

-65%

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C—

$44,980.00

$15,743.00

More Images

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C - Image 2

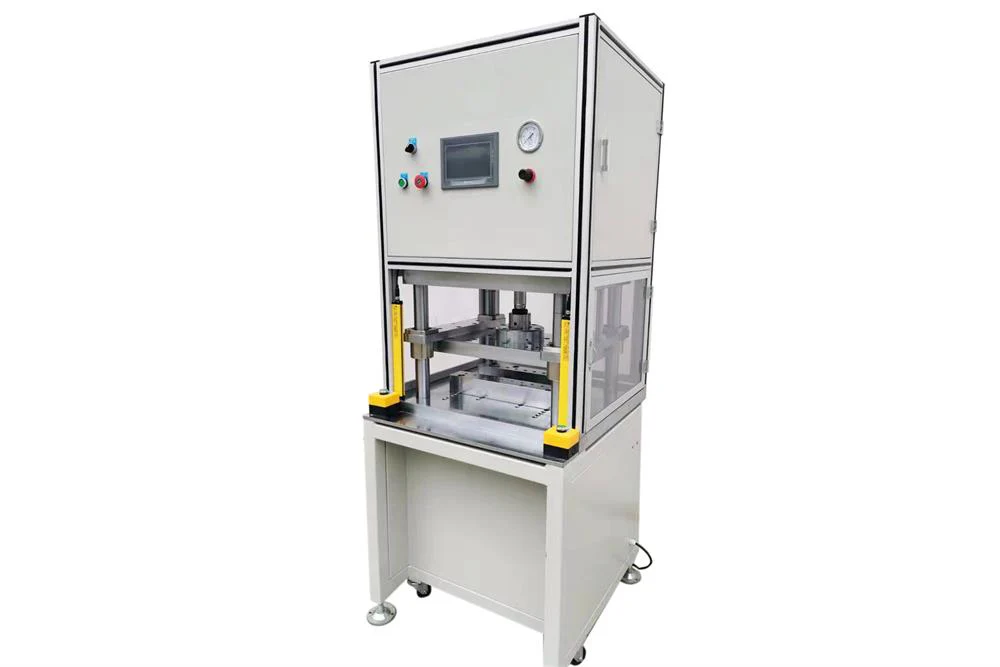

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C - Image 3

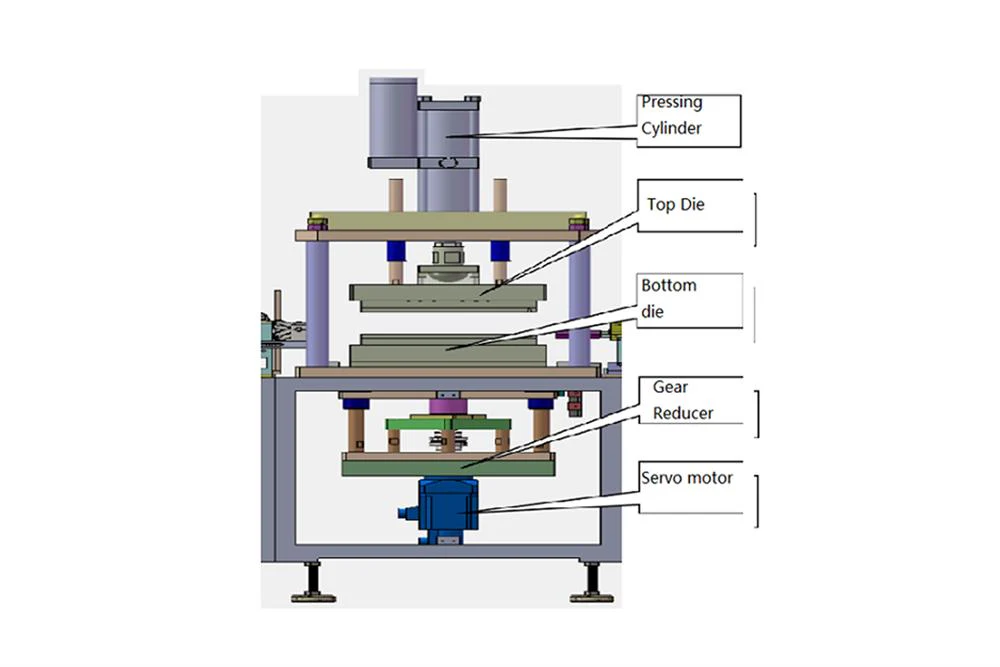

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C - Image 4

Large Pouch Cup Forming Machine for Aluminum-Laminated Films up to 600x500 mm - MSK-700C

EQ-MSK-700C is customized and manually operated large cup forming machine with Max/ 600 x 600 mm pouch die , which is designed for making large pouch cell in battery research lab.

SPECIFICATIONS:

Features	Precision mechanism to ensure cup forming with resolution +/- 0.1 mm Manual operation with an optical sensor for full protection Product yield may reach 5 - 8 pcs /min
Pressing Platen & Die	Effective pressing Area: 750 L x 600 W Pressing Die: Not included, but available based on customer request. Please provide a engineering die drawing before purchase
Power Requirement	208 - 220VAC, Single phase, 50/60Hz 2KW 110V Version is available upon request
Air Requirement	100 PSI air compressor is required ( not included )
Max. Cup Depth to Punch	< 8.0 mm within single cup 420 x 600mm
Max. Punching Pressure	30 Metric Tons
Production Yield	5 - 8 pcs/min dependent on operator experience
AL Laminated Film	Available upon request
Optional & Upgrade	Roll to Roll automatic processing device is available upon request at extra cost You may order a larger die cutter and vacuum seal to seal the large pouch cell.
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost

Product Information

Shipping & Returns

Description

EQ-MSK-700C is customized and manually operated large cup forming machine with Max/ 600 x 600 mm pouch die , which is designed for making large pouch cell in battery research lab.

SPECIFICATIONS:

Features	Precision mechanism to ensure cup forming with resolution +/- 0.1 mm Manual operation with an optical sensor for full protection Product yield may reach 5 - 8 pcs /min
Pressing Platen & Die	Effective pressing Area: 750 L x 600 W Pressing Die: Not included, but available based on customer request. Please provide a engineering die drawing before purchase
Power Requirement	208 - 220VAC, Single phase, 50/60Hz 2KW 110V Version is available upon request
Air Requirement	100 PSI air compressor is required ( not included )
Max. Cup Depth to Punch	< 8.0 mm within single cup 420 x 600mm
Max. Punching Pressure	30 Metric Tons
Production Yield	5 - 8 pcs/min dependent on operator experience
AL Laminated Film	Available upon request
Optional & Upgrade	Roll to Roll automatic processing device is available upon request at extra cost You may order a larger die cutter and vacuum seal to seal the large pouch cell.
Compliance	CE certified NRTL or CSA certification is available upon request at the extra cost
