18650 Cylinder Cell Case with Anti-Explosive Cap and Insulation O-ring - 100 Pcs/package - Lib-18650
18650 Cylinder Cell Case with Anti-Explosive Cap and Insulation O-ring - 100 Pcs/package - Lib-18650

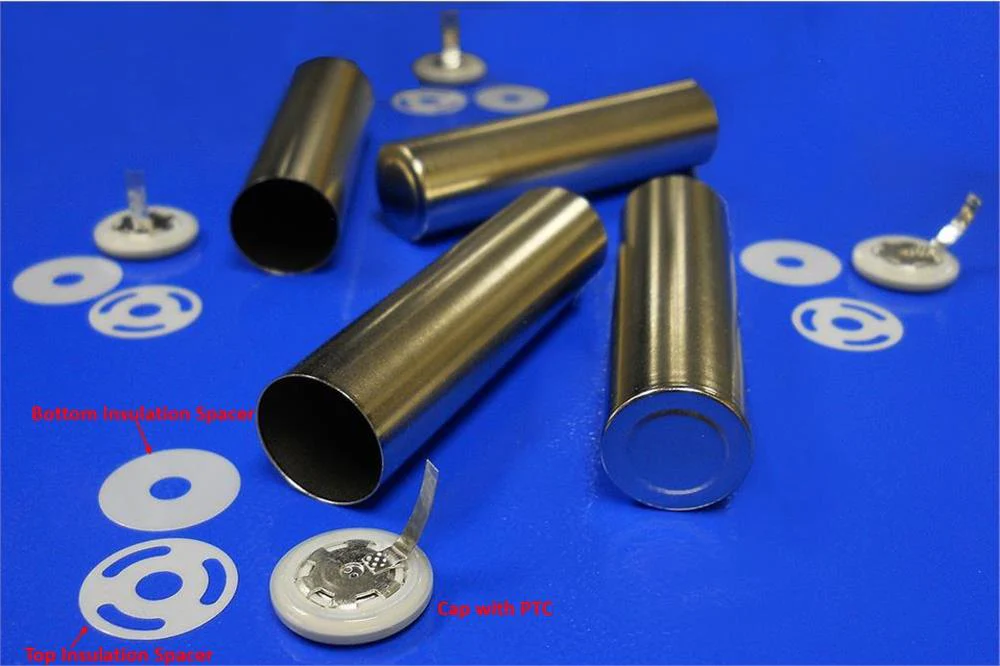

Specifications
Cap
Cap with Built-in PTC Thermistor for overcurrent protection
PTC
PTC resistance: 12 - 15 mΩ
Non-operating current: 3 A
Operating current: 6 A
Operating current at 10 A < 8 seconds
Maximum Voltage: 15 V
Maximum Current: 40 A
Dimensions (Dia x Height)
Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
Top Cap: 17.5mm(D) x 4.05mm(H)
Top Insulator: 12.5mm(D) x 0.19mm(H)
Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials
Case and cap are made of Nickel plated A3 steel
Sealing spacers are made of nylon
The insulating gasket is made of PET
Weight
9.50 g/pcs
Note
Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure -- if over 2.5MPa -- to ensure the can does not explode)
18650 case's grooving and sealing machine is available upon request
Application
To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510
Grooved by MSK-500
Sealed by MSK-510
DEmo Video How to make cylindral cell
Options
Safety protection: Positive Temperature Coefficient (PTC) Thermistor is built into the cap
PTC Thermistor will break the current when heated to 120ºC
$219.00
