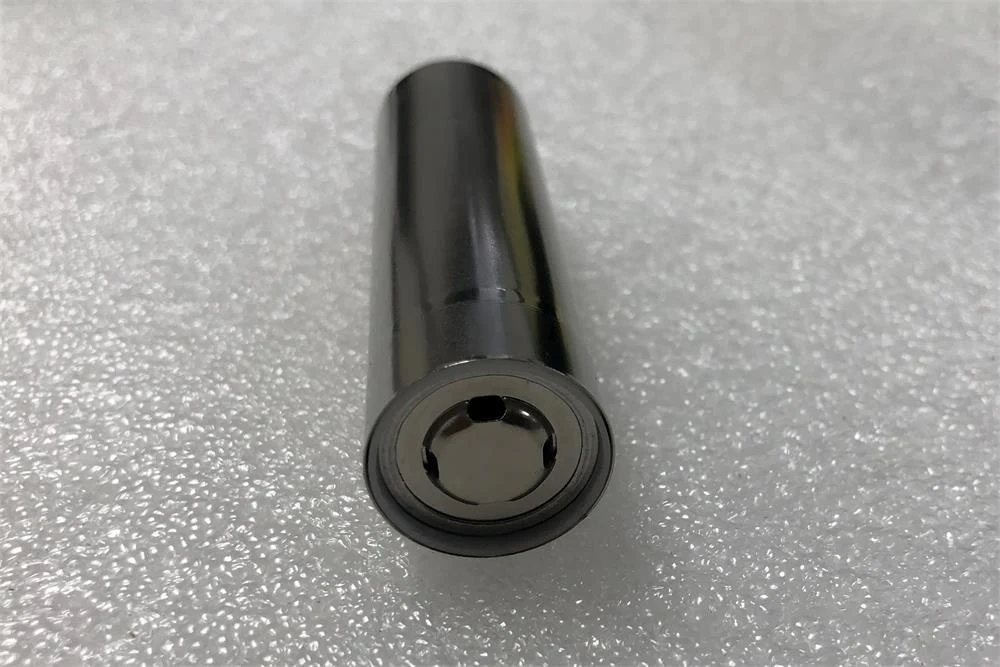

21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - Lib-21700
21700 Cylinder Cell Case with Anti-Explosive Cap and Electrode Tab - 100 Pcs/package - Lib-21700
Specifications

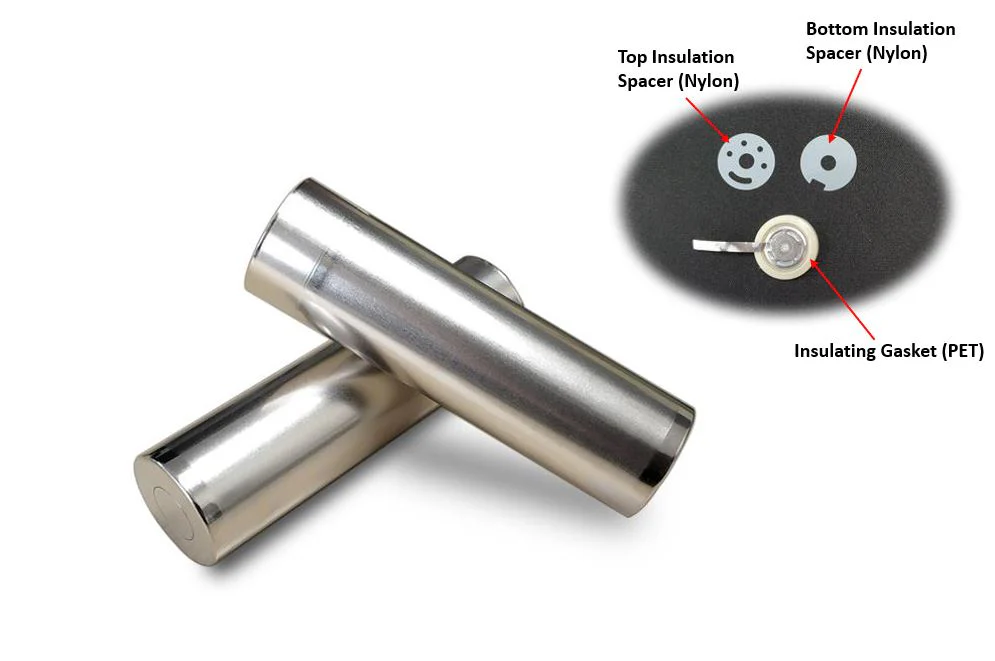

Material
Case and cap are made of Nickel plated A3 steel
Top and bottom insulating spacers are made of nylon
Insulating gasket is made of PET

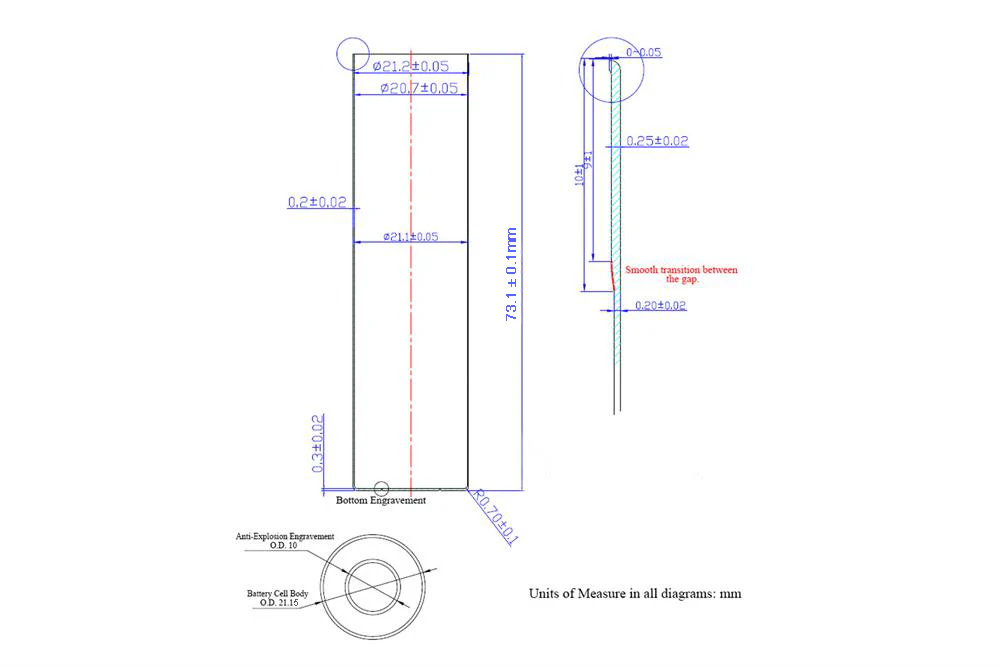

Dimensions (Dia x Height)
Case: 21.2mm (OD) x 20.7mm (ID) x 73.1mm (H)
Top Cap: 20.4mm (D) x 4.2mm (H)
Weight
8.45 g/pcs
Note
Safety valve's open pressure: 1.8 - 2.4MPa (the cap valve will open to release interior high pressure if over 2.4MPa, to ensure the can does not explode)
Application
To seal the cylinder cell, you should firstly groove it by MSK-500 and then crimp it by MSK-510
Grooved by MSK-500
Sealed by MSK-510
