Automatic Roll-to-Stripe Slitting Machine with Integrated Functions of Electrode Cutting, Tab Welding, and Taping for Cylindrical Cell-MSK-521
HomeStore

Automatic Roll-to-Stripe Slitting Machine with Integrated Functions of Electrode Cutting, Tab Welding, and Taping for Cylindrical Cell-MSK-521

Automatic Roll-to-Stripe Slitting Machine with Integrated Functions of Electrode Cutting, Tab Welding, and Taping for Cylindrical Cell-MSK-521

Outstanding Features:

  • Auto-tension control.
  • Continuous fixed-length cutting mode
  • Minor adjustment at the cutting edge for the continuous cutting
  • Automatic tab welding and taping function is integrated with electrode cutting
  • PLC Touch screen control panel

MTI has granted the patent 201821974061.8 for the Automatic Slitting Machine MSK-520/MSK-521 series since September 2019.

SPECIFICATIONS:

Working Voltage
  • Single-phase 208~240VAC, 50/60Hz, 4 kW
Feeding Material Requirements
  • Electrode Roll: 6-80 mm (W), 50-800 mm (L), O.D. ≤ 400 mm, I.D. is 3" for loading on roller.
  • Tab Roll: 1.5 - 4 mm (W), 20-70 mm (L), O.D. ≤ 400 mm, I.D. is 80mm for loading on roller.
  • Protection Tape: 6- 20 mm (W), 6-80 mm (L), O.D. ≤ 200 mm, I.D. is 3" for loading on roller.
Winding Alignment
  • ±0.5 mm
Cutting Position Accuracy
  • ± 0.3mm
Tab Welding Tensile Force
  • >8 N
Tab length outside of trail
  • 6-30 mm
Part Lifetime
  • Lifetime for electrode blade: 500K times
  • Lifetime for tab blade: 500K times
  • Lifetime for welding head: 500K times
Compress Air Requirement
  • 0.5~0.8MPa (Please note that an air compressor is a need for the operation of this machine. Air Compressor is not included. please click here to order or order from your local hardware store)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
  • Inert Gas Regulator , Two Stage Brass 0-100 psi Analytical Cylinder Regulator - CGA-580-LD    MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - EQ-ACPHD-3-LD



$49,980.00
Automatic Roll-to-Stripe Slitting Machine with Integrated Functions of Electrode Cutting, Tab Welding, and Taping for Cylindrical Cell-MSK-521—
$49,980.00

More Images

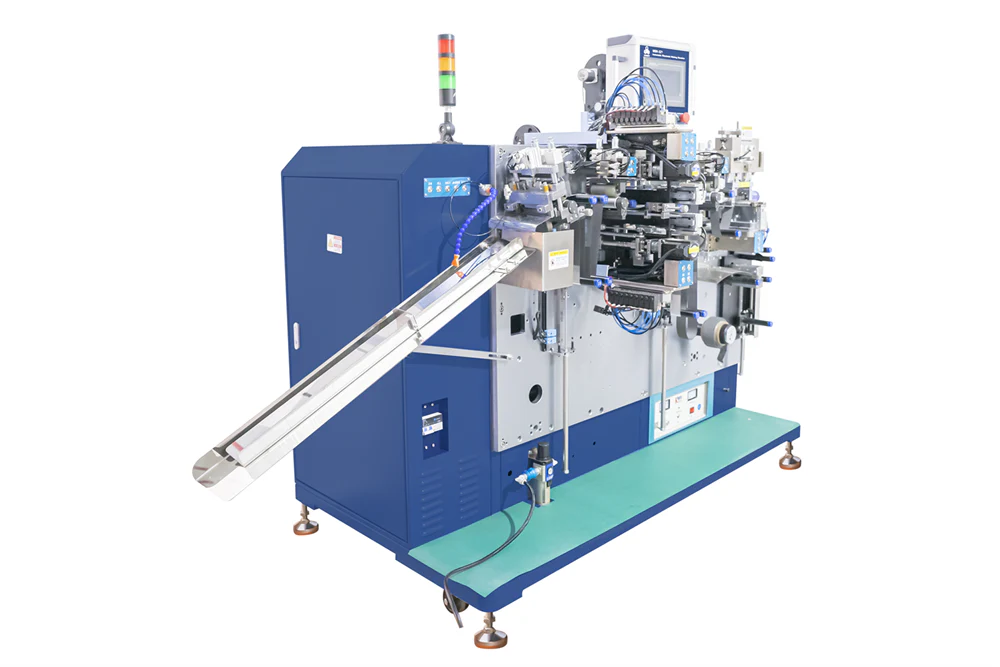

Automatic Roll-to-Stripe Slitting Machine with Integrated Functions of Electrode Cutting, Tab Welding, and Taping for Cylindrical Cell-MSK-521 - Image 2

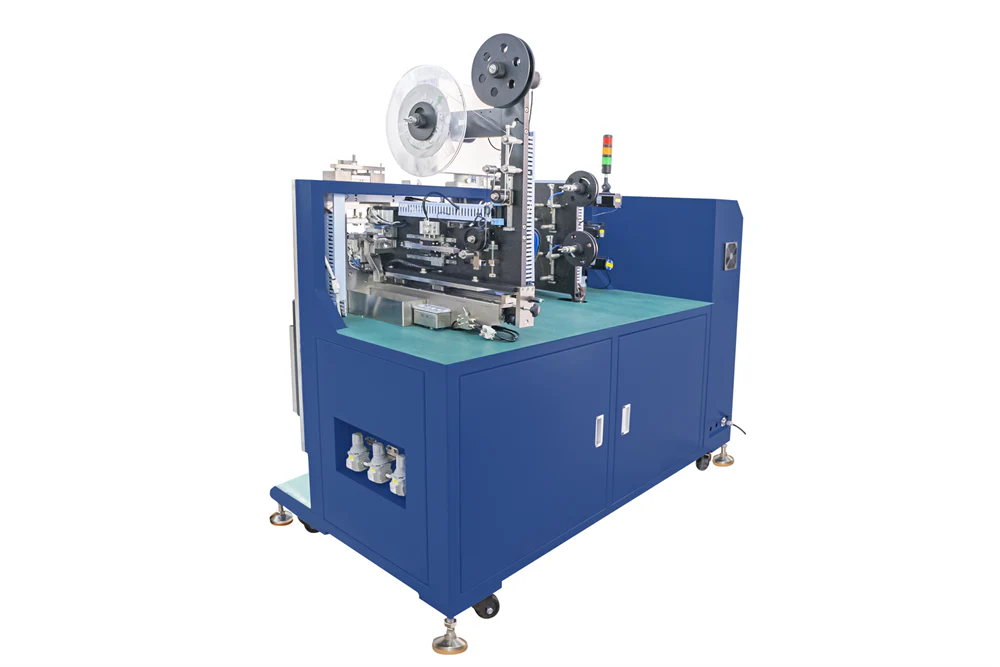

Automatic Roll-to-Stripe Slitting Machine with Integrated Functions of Electrode Cutting, Tab Welding, and Taping for Cylindrical Cell-MSK-521 - Image 3
Automatic Roll-to-Stripe Slitting Machine with Integrated Functions of Electrode Cutting, Tab Welding, and Taping for Cylindrical Cell-MSK-521 - Image 4

Automatic Roll-to-Stripe Slitting Machine with Integrated Functions of Electrode Cutting, Tab Welding, and Taping for Cylindrical Cell-MSK-521

Outstanding Features:

  • Auto-tension control.
  • Continuous fixed-length cutting mode
  • Minor adjustment at the cutting edge for the continuous cutting
  • Automatic tab welding and taping function is integrated with electrode cutting
  • PLC Touch screen control panel

MTI has granted the patent 201821974061.8 for the Automatic Slitting Machine MSK-520/MSK-521 series since September 2019.

SPECIFICATIONS:

Working Voltage
  • Single-phase 208~240VAC, 50/60Hz, 4 kW
Feeding Material Requirements
  • Electrode Roll: 6-80 mm (W), 50-800 mm (L), O.D. ≤ 400 mm, I.D. is 3" for loading on roller.
  • Tab Roll: 1.5 - 4 mm (W), 20-70 mm (L), O.D. ≤ 400 mm, I.D. is 80mm for loading on roller.
  • Protection Tape: 6- 20 mm (W), 6-80 mm (L), O.D. ≤ 200 mm, I.D. is 3" for loading on roller.
Winding Alignment
  • ±0.5 mm
Cutting Position Accuracy
  • ± 0.3mm
Tab Welding Tensile Force
  • >8 N
Tab length outside of trail
  • 6-30 mm
Part Lifetime
  • Lifetime for electrode blade: 500K times
  • Lifetime for tab blade: 500K times
  • Lifetime for welding head: 500K times
Compress Air Requirement
  • 0.5~0.8MPa (Please note that an air compressor is a need for the operation of this machine. Air Compressor is not included. please click here to order or order from your local hardware store)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
  • Inert Gas Regulator , Two Stage Brass 0-100 psi Analytical Cylinder Regulator - CGA-580-LD    MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - EQ-ACPHD-3-LD



Product Information

Shipping & Returns

Description

Outstanding Features:

  • Auto-tension control.
  • Continuous fixed-length cutting mode
  • Minor adjustment at the cutting edge for the continuous cutting
  • Automatic tab welding and taping function is integrated with electrode cutting
  • PLC Touch screen control panel

MTI has granted the patent 201821974061.8 for the Automatic Slitting Machine MSK-520/MSK-521 series since September 2019.

SPECIFICATIONS:

Working Voltage
  • Single-phase 208~240VAC, 50/60Hz, 4 kW
Feeding Material Requirements
  • Electrode Roll: 6-80 mm (W), 50-800 mm (L), O.D. ≤ 400 mm, I.D. is 3" for loading on roller.
  • Tab Roll: 1.5 - 4 mm (W), 20-70 mm (L), O.D. ≤ 400 mm, I.D. is 80mm for loading on roller.
  • Protection Tape: 6- 20 mm (W), 6-80 mm (L), O.D. ≤ 200 mm, I.D. is 3" for loading on roller.
Winding Alignment
  • ±0.5 mm
Cutting Position Accuracy
  • ± 0.3mm
Tab Welding Tensile Force
  • >8 N
Tab length outside of trail
  • 6-30 mm
Part Lifetime
  • Lifetime for electrode blade: 500K times
  • Lifetime for tab blade: 500K times
  • Lifetime for welding head: 500K times
Compress Air Requirement
  • 0.5~0.8MPa (Please note that an air compressor is a need for the operation of this machine. Air Compressor is not included. please click here to order or order from your local hardware store)
  • Attention: If a gas cylinder is used instead of an air compressor(pic2), a two-stage pressure regulator(pic1) must be installed on the gas cylinder to limit the pressure within the required working range for safe operation. Click here to learn the installation of a gas regulator.
  • Inert Gas Regulator , Two Stage Brass 0-100 psi Analytical Cylinder Regulator - CGA-580-LD    MAX. 120 PSI 5.5 / 6.3 gal. 1 HP Ultra Quiet and Oil-Free Steel Tank Air Compressor with connection kit - EQ-ACPHD-3-LD
