40 L Capacity Planetary Ball Mill (4x10L) with Optional Milling Jars - MSK-SFM-1-10

40 L Capacity Planetary Ball Mill (4x10L) with Optional Milling Jars - MSK-SFM-1-10

40 L Capacity Planetary Ball Mill (4x10L) with Optional Milling Jars - MSK-SFM-1-10

MSK-SFM-1-10 is a Planetary Ball Mill with optional four 10 liter milling jars (40 L capacity) The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.

SPECIFICATIONS

Working Voltage	208 - 240V AC (three -phase), 50/60 Hz 5.50 KW power
Speed control	Digital controller by changing the frequency of three-phase AC motor
Rotary Rate & Centrifugal acceleration:	Main plate revolution: 20-195 rpm, g Mixing tank self-rotation 40- 390 rpm,
Digital display	Digital display the speed in RPM/Hz Major platen's running time: 1- 9999 minutes adjustable Rest time: 1- 999 minutes adjustable anticlockwise rotation time: 1- 999 minutes adjustable
Milling Jars (optional )	Four 10L milling jars are optional with dimensions of OD 243 x ID232 x H259 mm Please choose from product options for SS stainless steel or Nylon jars Total Capacity: 40 Liters
Optional	Forced cold air to cool during milling is available at the extra cost
Material for milling	Max. input particle size: < 10mm for brittle material and < 3 mm for other materials Min output particle size: wet milling < 1 micron, and dry milling < 20 micron
Compliance	CE Certified NRTL certification is available at an extra cost

Select Jar

From $1,396.00

40 L Capacity Planetary Ball Mill (4x10L) with Optional Milling Jars - MSK-SFM-1-10—

$1,396.00

More Images

40 L Capacity Planetary Ball Mill (4x10L) with Optional Milling Jars - MSK-SFM-1-10 - Image 2

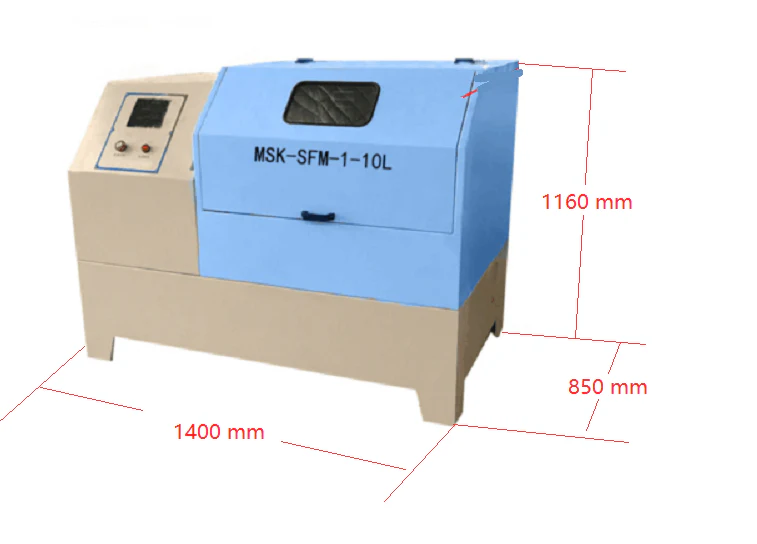

40 L Capacity Planetary Ball Mill (4x10L) with Optional Milling Jars - MSK-SFM-1-10 - Image 3

40 L Capacity Planetary Ball Mill (4x10L) with Optional Milling Jars - MSK-SFM-1-10

MSK-SFM-1-10 is a Planetary Ball Mill with optional four 10 liter milling jars (40 L capacity) The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.

SPECIFICATIONS

Working Voltage	208 - 240V AC (three -phase), 50/60 Hz 5.50 KW power
Speed control	Digital controller by changing the frequency of three-phase AC motor
Rotary Rate & Centrifugal acceleration:	Main plate revolution: 20-195 rpm, g Mixing tank self-rotation 40- 390 rpm,
Digital display	Digital display the speed in RPM/Hz Major platen's running time: 1- 9999 minutes adjustable Rest time: 1- 999 minutes adjustable anticlockwise rotation time: 1- 999 minutes adjustable
Milling Jars (optional )	Four 10L milling jars are optional with dimensions of OD 243 x ID232 x H259 mm Please choose from product options for SS stainless steel or Nylon jars Total Capacity: 40 Liters
Optional	Forced cold air to cool during milling is available at the extra cost
Material for milling	Max. input particle size: < 10mm for brittle material and < 3 mm for other materials Min output particle size: wet milling < 1 micron, and dry milling < 20 micron
Compliance	CE Certified NRTL certification is available at an extra cost

Product Information

Shipping & Returns

Description

MSK-SFM-1-10 is a Planetary Ball Mill with optional four 10 liter milling jars (40 L capacity) The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, and Environmental Protection, etc.

SPECIFICATIONS

Working Voltage	208 - 240V AC (three -phase), 50/60 Hz 5.50 KW power
Speed control	Digital controller by changing the frequency of three-phase AC motor
Rotary Rate & Centrifugal acceleration:	Main plate revolution: 20-195 rpm, g Mixing tank self-rotation 40- 390 rpm,
Digital display	Digital display the speed in RPM/Hz Major platen's running time: 1- 9999 minutes adjustable Rest time: 1- 999 minutes adjustable anticlockwise rotation time: 1- 999 minutes adjustable
Milling Jars (optional )	Four 10L milling jars are optional with dimensions of OD 243 x ID232 x H259 mm Please choose from product options for SS stainless steel or Nylon jars Total Capacity: 40 Liters
Optional	Forced cold air to cool during milling is available at the extra cost
Material for milling	Max. input particle size: < 10mm for brittle material and < 3 mm for other materials Min output particle size: wet milling < 1 micron, and dry milling < 20 micron
Compliance	CE Certified NRTL certification is available at an extra cost
