Anti-corrosive vacuum chucks with O-Ring with different sizes FOR VTC-100PA - MTI-VTC100PA

Anti-corrosive vacuum chucks with O-Ring with different sizes FOR VTC-100PA - MTI-VTC100PA

Anti-corrosive vacuum chucks with O-Ring with different sizes FOR VTC-100PA - MTI-VTC100PA

SPECIFICATIONS:

Model No.	MTI-VTC100PA-PP	MTI-VTC100PA-PTFE
VTC-100PA	(In Standard Package of VTC-100PA)	Optional Upgrade Product for VTC-100PA with Heating Cover
Material	Polypropylene (PP) (Anti-corrosion)	PTFE (High-performance anti-corrosion) (Higher thermal resistance performance)
Max working temperature	Max. 120C	Max.200C (several minutes)

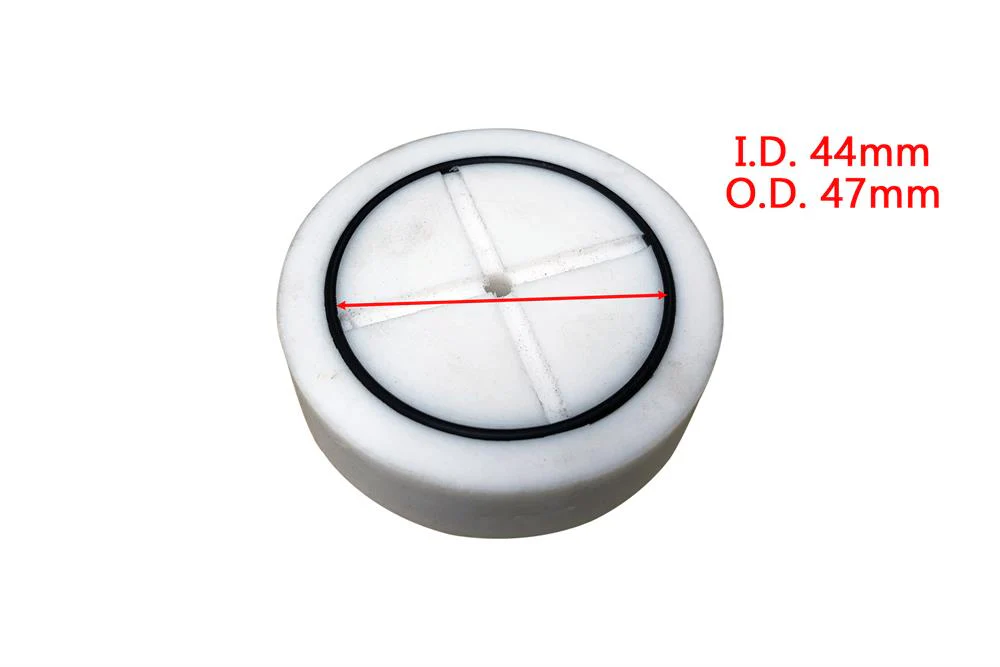

Size	Oring size Φ44mm (For 4-inch wafer)	Oring size Φ44mm (For 4-inch wafer)

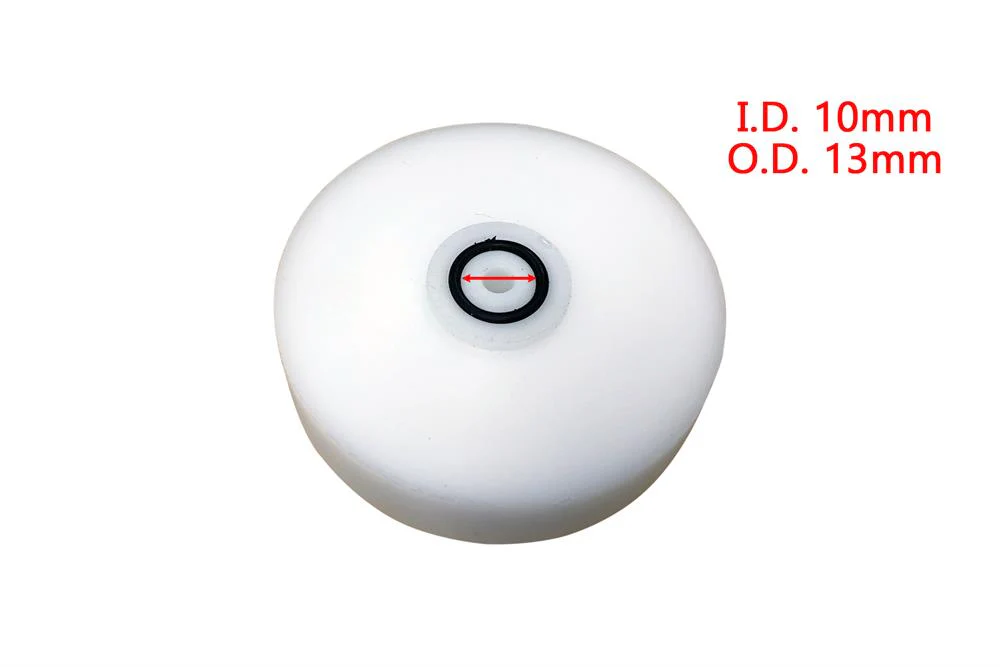

Size	Oring size Φ10mm (For 1-inch wafer)	Oring size Φ10mm (For 1-inch wafer)
Max working temperature for Vacuum Chuck only,	For VTC-100PA Spin system, Max. 120C (several seconds or minutes) For PTFE Vacuum Chuck only, Max. Operating temperatures are 250C PTFE Heating cover is capable of drying temperature up to 200C. Vacuum chuck and chamber also need to be replaced by PTFE material to withstand high heating temperature. Please contact us for the quote.
Operation Instructions	Click the picture to watch demo video for how to use 10mm vacuum chuck hold 5mm sample.
ORING (MTI-VTC100PA-ORING)	Please contact us to order MTI-VTC100PA-ORING
Application Note	If anyone is trying to use the Heating cover over 120C, PTFE Vacuum Chamber is required. Please email us with your desired temperature and size for a quotation.

Select Material

Select Oring I.D. Size

From $55.65

Original: $159.00

-65%

Anti-corrosive vacuum chucks with O-Ring with different sizes FOR VTC-100PA - MTI-VTC100PA—

$159.00

$55.65
