Gas Pre-Heating Tube Furnace up to 700oC @ 15L/m Flow Rate For Pyrolysis Reactors- OTF-1200X-25

• Voltage: 208 - 240VAC, 50/60Hz
• Power2.4 KW

• Fibrous alumina for thermal insulation
• Double-layer steel structure with air cooling
• Split door design for easy installation of the heating coil
• Heating zone length 400 mm
• Furnace working temperature: 1100ºC max.

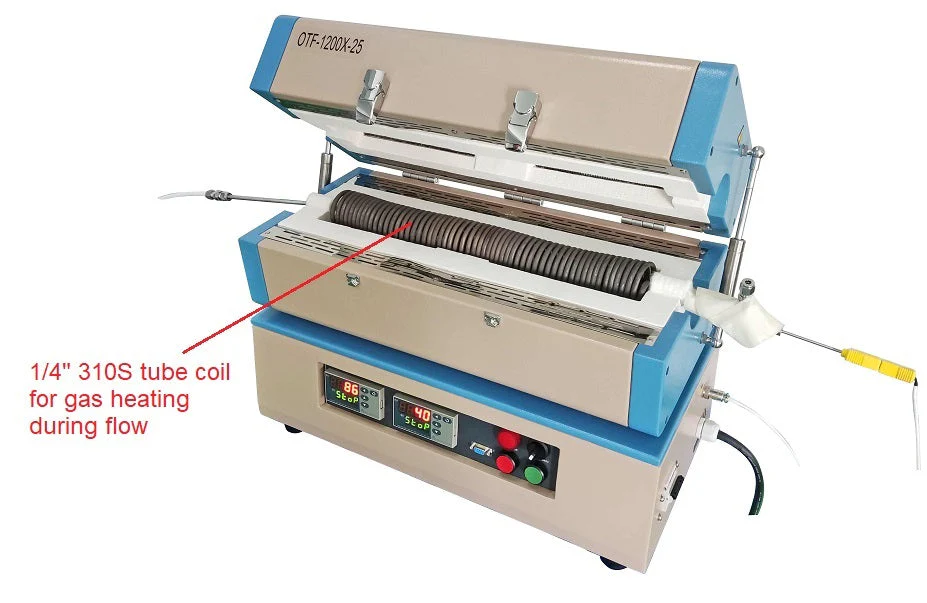

• The heating coil is made of 1/4" OD 310S alloy with a total length of 750 mm ( if straight )
• 1/4" gas inlet and outlet with valves
• The gas outlet temperature is monitored by the K type of thermal couple, and it is dependent on the gas flow rate as below ( Ar gas as standard )

• Furnace Temperature	Gas outlet Temperature	Gas flow rate
  900	400	200ml/min
  900	450	500ml/min
  900	520	1L/min
  900	600	2L/min
  900	650	5L/min
  900	700	10L/min

Temperature Controller

• 30 programmable segments for precise control of heating rate, cooling rate, and dwell time.
• Built-in PID Auto-Tune function with overheating & broken thermocouple protection.
• Over-temperature protection and alarm allow for operation without attendant(s).
• +/- 1 ºC temperature accuracy.

Compliance

• CE Certified
• NRTL or CSA certification is available at an extra cost


Warning

• Attention: A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure to below 3 PSI for safe operation. Click here to learn the installation of a gas regulator.
