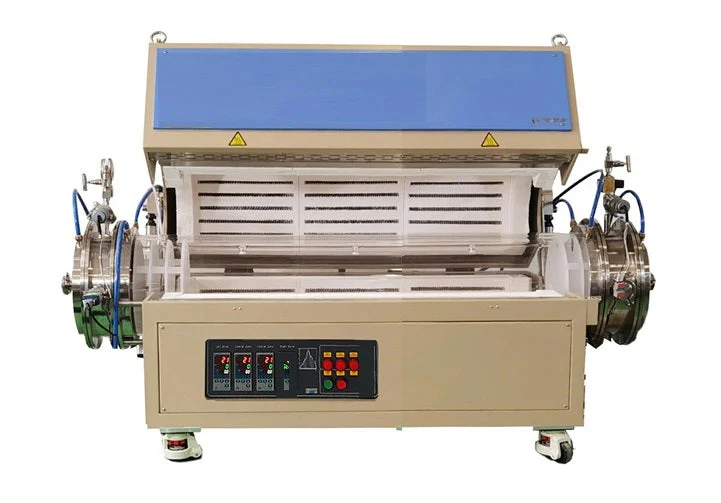

OTF-1200X-III-UL is an 8" ID split-able three-zone tube furnace with 35.4" L heating zone up to 1200°C. The multiple zones tube furnace is enabled to create a 12"L uniform temperature zone within +/- 2ºC. The quartz tube and vacuum sealing flanges with a pressure gauge & a ball valve are included for immediate use. Three programmable digital temperature controllers are installed with a K-type thermal couple with an accuracy of +/- 1 °C. It is an excellent furnace for annealing, diffusing, and sintering samples under various gas atmospheres.
SPECIFICATIONS:
Furnace Structure
  • Double-layer steel case with two cooling fans, which ensures low surface temperature;
  • Energy-saving high-purity fibrous alumina insulation;
  • Two fibrous ceramic tube blocks are included to block heat radiation from the inside tube. (Ceramic blocks must be fully inserted into the furnace chamber before heating
  • Split cover with interlock protection
  • Quartz block (Optional) is ideal for more cleanliness and a higher achievable vacuum.

Power
  • AC 208-240V, three-phase, 50/60 Hz (50A breaker required)
  • Power consumption: 10 KW Max.
    The power cord is included without a plug
Heating Zone Length
  • 3 heating zones: 900mm (35.4" L) in total
  • 300mm (11.8") for each zone

Quartz Tube & Sealed flange

Hinged Type Vacuum Sealing Flange with KF-40D Adaptor for 11" processing Tube - EQ-FL-278
  • Quartz Tube: 216 OD x 206 IDx 1524L mm(8.5"OD x 8.1" x 60"L)  is included
  • One pair of SS 304 vacuum flange with double high-temperature silicone O-ring and water cooling jacket is Included
  • 2 needle valves are installed with a flange
  • One Vacuum/ pressure gauge is installed on one side flange
  • The vacuum level： 10-2 torr by the mechanical vacuum pump and 10-5 torr by the turbopump.
  • Optional: Please click the picture below to order: a vacuum pump (Pic. 1 -2 ), and a digital vacuum gauge (pic. 3) as well as a mass flow controller or gas mixing and delivery system (Pic.5)
Pic. 1 Pic.2 Pic 3 Pic 4Pic 5
Heating Temperature
  • Max. Heating Temperature: 1200°C
  • Continuous Heating Temperature: 1100°C
  • 1000°C under vacuum
  • Max. Heating Rate: 20°C/min
Temperature Controller
  • 3 digital temperature controllers certified by MET and CE Certified
  • PID automatic control with 30 programmable segments for control of heating & cooling rate and dwell time.
  • Built-in overheating & broken thermocouple protection.
  • Over-temperature protection and alarm allow for operation without attendant(s).
  • +/- 1 ºC temperature accuracy.
  • RS485 Communications Port.
Optional:
  • The furnace may be operated by a PC by installing a control module. Please order an MTS-02 control module at an extra cost.
  • If you order the PC control module together with the furnace, we will install and test it before shipping. We recommend you order a computer laptop from us to avoid software installation problems. For more information please click here.

Eurotherm Temperature Controllers (optional upgrade)
  • 1 heating channel
  • 1 program of 8 or 24 segments
  • Alarm Relay: Form 'A' and Form ‘C’ built-in
  • Digital Communications: RS485
  • Temperature Accuracy: ± 0.1ºC
  • Recipes: Using a PC tool recipes can be created that can be used to change the operating parameters of the 3000 simply by selecting a new recipe via the HMI. This is very useful where multiple products are processed using the same controller but require different parameters to be set.
Laptop, software & WiFi Control(Optional)
  • Brand new laptop with Microsoft Windows 10 and Microsoft Office 2013 (30 days free trial)
  • LabVIEW Temperature Control System (MTS01)enables the user to edit temperature profiles, manage heat-treatment recipes, and record, and plot data for MTI furnaces.
  • A wireless remote control provides up to 300 meters of operating range.
Compliance
  • CE Certified
  • NRTL (UL61010) or CSA certification is available at extra cost.

Application Notes
  • Please click the picture below to learn how to create a temperature gradient (pic.1)
  • Order a temperature calibration kit by clicking picture 2.
  • Attention:  A two-stage pressure regulator must be installed on the gas cylinder to limit the pressure below 3PSI for safe operation. Click here to learn the installation of a gas regulator. (pic.3)
  • We suggest accommodating an FH-60 fume hood with this furnace (pic.4)
pic.1 pic.2 pic.3 pic.4
