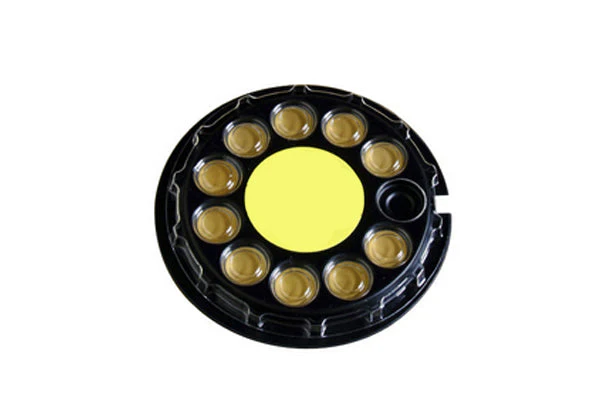

Gold Quartz Crystal For General Application - QC-GOLD-LD

Gold Quartz Crystal For General Application - QC-GOLD-LD

Dimension
  • 14 mm Dia.
Electrode Material
  • Gold
Sensor and Monitor
  • MTI thin film thickness monitor - EQ-TM106-LD
Life Time
  • Quartz crystals are consumable parts, no warranty of any kind
  • Please note the crystal life form the thickness monitor
Typical Applications
  • Good for most applications (no high heat loads or high stress)
  • DC Sputtering
  • RF Sputtering
  • Thermal Evaporation
  • Ion Plating
  • Anticorrosive Coating
Application Notes
  • Choose the quartz crystal with the right electrode material for your application - gold, silver, alloy:
    • Recommend gold electrode crystals for most applications
    • Silver electrode crystals work well for processes with high heat loads, such as sputtering
    • Alloy electrode crystals are recommended for high-stress deposition, such as optical coating with dielectric materials and semiconductor processes with high-stress materials
$34.98

Original: $99.95

-65%
