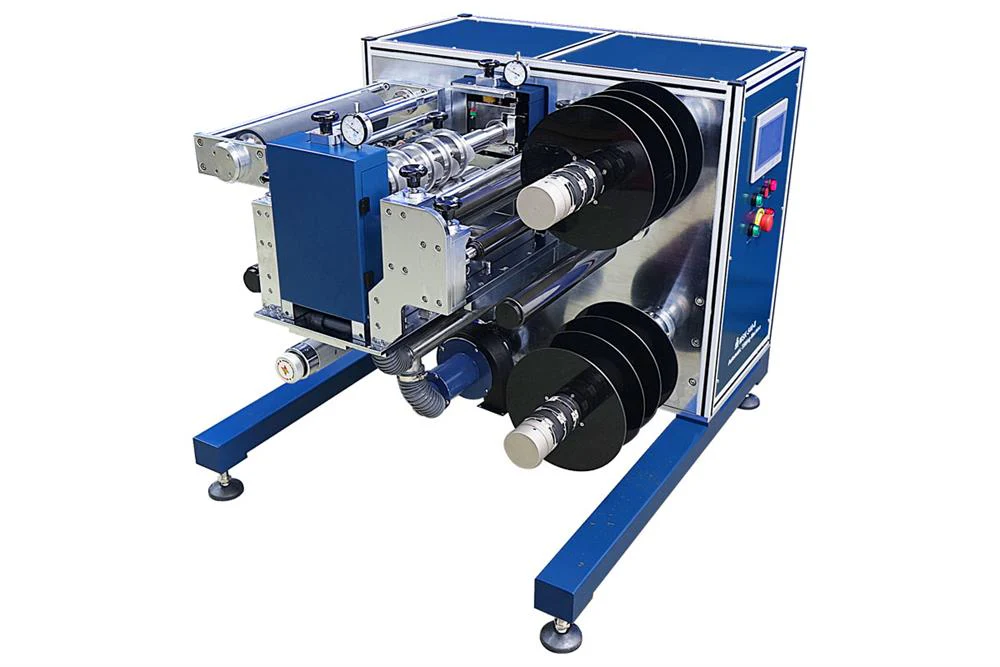

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II

MSK-540-II is a Roll to Roll automatic continuous slitting machine.

Multiple electrodes strip slitting
High precision round disc blades
Cutting depth and speed are adjustable
Automatic Roll to Roll Feeding and Correcting

MTI has granted the patent 201821974061.8 for the Roll to Roll Automatic Slitting Machine MSK-540-II since September 2019.

SPECIFICATIONS:

Working Voltage	Power supply: Single-phase 220V AC, 50/60Hz Maximum Power: 1 kW For operating at 110V AC, please order a transformer separately by clicking the Picture below
Reeling and Unreeling	Roller Width: 380 mm Automatic Tension control ≤ 50N Max. Reeling/Unreeling Diameter: 250mm Automatic unwinding correction, accuracy ± 0.5mm
Cutting Blades	Burr condition: ≤ 16 um Four electrode strip slitting Top and bottom set of round blades Blade Materials: Ultrafine Tungsten Alloy Blade Diameter: 100mm
Cutting Width	Range: 30 ~ 300mm The width of the electrode strip is preset and fixed Replace the space jacket to manually adjust the width at extra cost
Cutting Thickness	10 - 300 um
Cutting Speed	1 - 5 m/min Adjustable
Optional Upgrades	Multi-blade and wrapping roller can be upgraded to enable slitting at 8 strips at extra cost De-dusting and iron powder removing device could be added at extra cost

$34,960.10

Original: $99,886.00

-65%

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II—

$99,886.00

$34,960.10

More Images

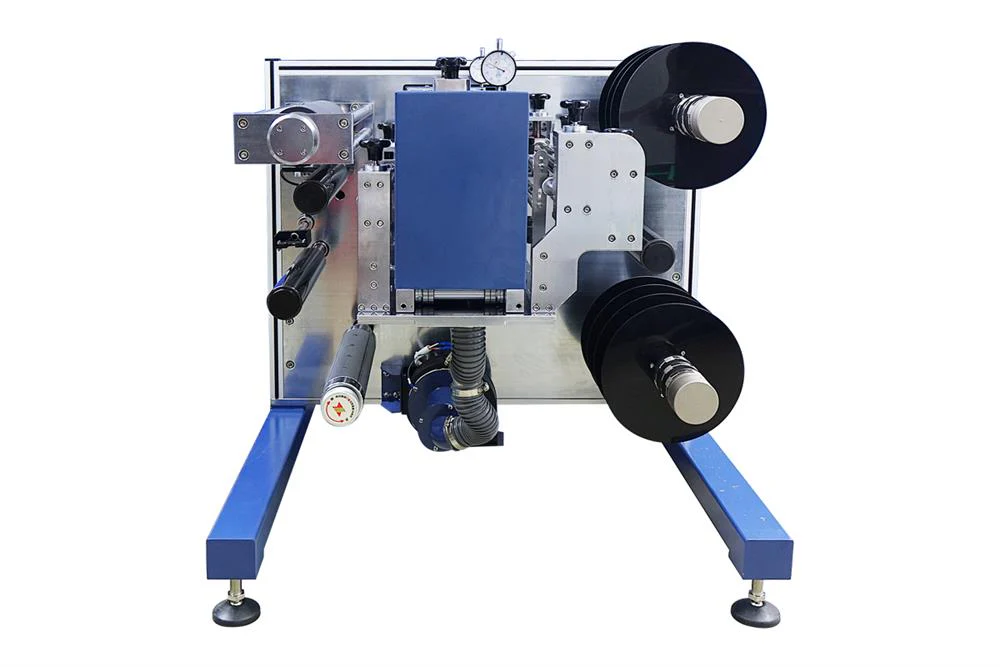

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II - Image 2

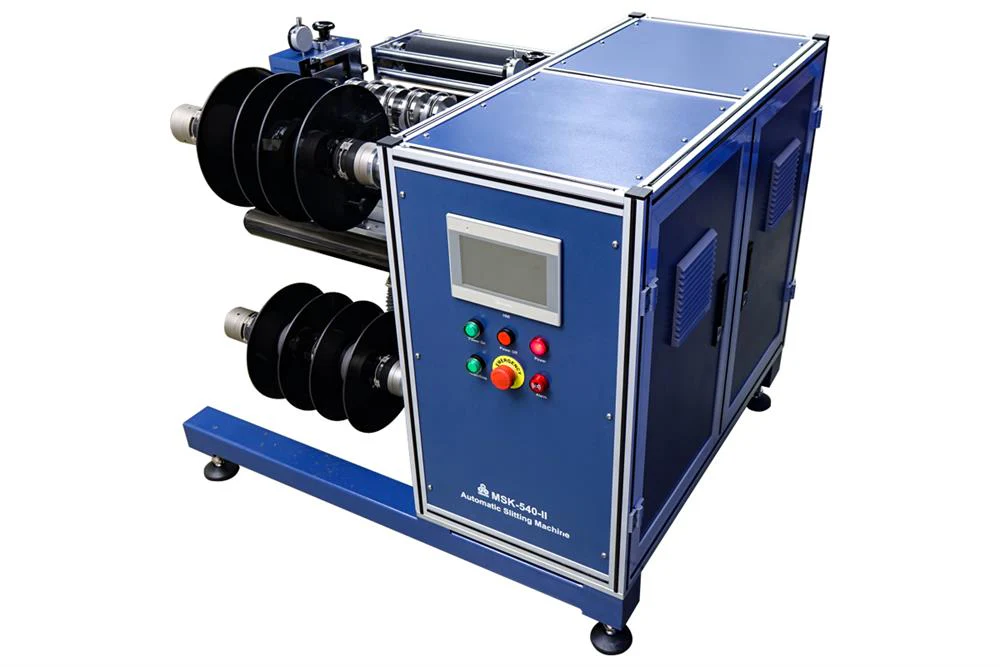

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II - Image 3

Roll to Roll Continuous Slitting Machine (Max.300mm Slitting Width) for Multiple Electrodes Strips - MSK-540-II

MSK-540-II is a Roll to Roll automatic continuous slitting machine.

Multiple electrodes strip slitting
High precision round disc blades
Cutting depth and speed are adjustable
Automatic Roll to Roll Feeding and Correcting

MTI has granted the patent 201821974061.8 for the Roll to Roll Automatic Slitting Machine MSK-540-II since September 2019.

SPECIFICATIONS:

Working Voltage	Power supply: Single-phase 220V AC, 50/60Hz Maximum Power: 1 kW For operating at 110V AC, please order a transformer separately by clicking the Picture below
Reeling and Unreeling	Roller Width: 380 mm Automatic Tension control ≤ 50N Max. Reeling/Unreeling Diameter: 250mm Automatic unwinding correction, accuracy ± 0.5mm
Cutting Blades	Burr condition: ≤ 16 um Four electrode strip slitting Top and bottom set of round blades Blade Materials: Ultrafine Tungsten Alloy Blade Diameter: 100mm
Cutting Width	Range: 30 ~ 300mm The width of the electrode strip is preset and fixed Replace the space jacket to manually adjust the width at extra cost
Cutting Thickness	10 - 300 um
Cutting Speed	1 - 5 m/min Adjustable
Optional Upgrades	Multi-blade and wrapping roller can be upgraded to enable slitting at 8 strips at extra cost De-dusting and iron powder removing device could be added at extra cost

Product Information

Shipping & Returns

Description

MSK-540-II is a Roll to Roll automatic continuous slitting machine.

Multiple electrodes strip slitting
High precision round disc blades
Cutting depth and speed are adjustable
Automatic Roll to Roll Feeding and Correcting

MTI has granted the patent 201821974061.8 for the Roll to Roll Automatic Slitting Machine MSK-540-II since September 2019.

SPECIFICATIONS:

Working Voltage	Power supply: Single-phase 220V AC, 50/60Hz Maximum Power: 1 kW For operating at 110V AC, please order a transformer separately by clicking the Picture below
Reeling and Unreeling	Roller Width: 380 mm Automatic Tension control ≤ 50N Max. Reeling/Unreeling Diameter: 250mm Automatic unwinding correction, accuracy ± 0.5mm
Cutting Blades	Burr condition: ≤ 16 um Four electrode strip slitting Top and bottom set of round blades Blade Materials: Ultrafine Tungsten Alloy Blade Diameter: 100mm
Cutting Width	Range: 30 ~ 300mm The width of the electrode strip is preset and fixed Replace the space jacket to manually adjust the width at extra cost
Cutting Thickness	10 - 300 um
Cutting Speed	1 - 5 m/min Adjustable
Optional Upgrades	Multi-blade and wrapping roller can be upgraded to enable slitting at 8 strips at extra cost De-dusting and iron powder removing device could be added at extra cost
