4L Capacity Planetary Ball Mill (4 x 1L) with optional Milling Jars - MSK-SFM-2-1

4L Capacity Planetary Ball Mill (4 x 1L) with optional Milling Jars - MSK-SFM-2-1

4L Capacity Planetary Ball Mill (4 x 1L) with optional Milling Jars - MSK-SFM-2-1

MSK-SFM-2-1 is a Planetary Ball Mill with a total of 4L capacity). Various milling jars are optional from 500ml to 1000 ml. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection, etc.

SPECIFICATIONS

Working Voltage	208 - 240V AC (single-phase), 50/60 Hz 750W power The 1500W transformer will be needed if operating at 110V 220V AC Power plug is not included. Please click here to order the plug).
Speed control	Digital controller by changing the frequency of three-phase AC motor
Rotary Rate & Centrifugal acceleration:	Main plate revolution: 35-335 rpm, Mixing tank self-rotation: 70- 670 rpm, Total Centrifugal acceleration:: 40 g
Digital display	Digital display of the speed in RPM/Hz Major platen's running time: 1- 3600 minutes adjustable Rest time: 1- 999 minutes adjustable anticlockwise rotation time: 1- 3600 minutes adjustable Suggested working time: 48 hours Max.
MillingTank (Jar)	The mill machine can carry 4 x 1000 ml jars. Please choose from the product bar The machine also can carry 4 x 500ml jars. Please click here to order Various 500ml jars The adaptor for a 500 ml jar is available Note: How to achieve finer or desired particles via ball mill is a research project, which is depended on the material to be mixed, grinding time and speed, combination of grinding jar and milling ball, etc. It is your responsibility to find the best milling procedure based on your material. Welcome you come to MTI lab at California to do a test before purchase

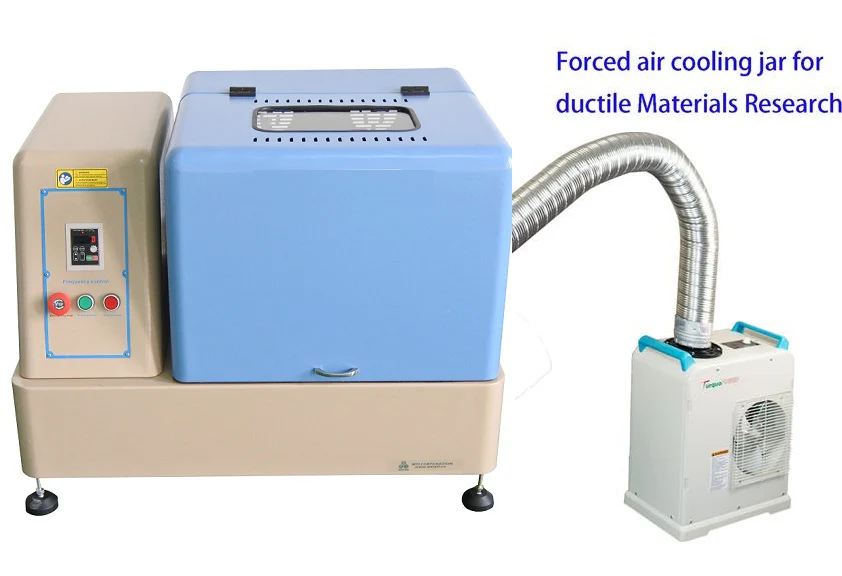

Optional	A larger ball mill with a 4x10L jar ( 40 L in total) is available upon request. PTFE and Stainless steel jars are available upon request Forced cold air to cool during milling is available at an extra cost
Material for milling	Max. input particle size: < 10mm for brittle material and < 3 mm for other materials Min output particle size: wet milling < 1 micron, and dry milling < 20 micron
Compliance	CE Certified NRTL certification is available at an extra cost

Select Jar

From $2,449.30

Original: $6,998.00

-65%

4L Capacity Planetary Ball Mill (4 x 1L) with optional Milling Jars - MSK-SFM-2-1—

$6,998.00

$2,449.30

More Images

4L Capacity Planetary Ball Mill (4 x 1L) with optional Milling Jars - MSK-SFM-2-1 - Image 2

4L Capacity Planetary Ball Mill (4 x 1L) with optional Milling Jars - MSK-SFM-2-1 - Image 3

4L Capacity Planetary Ball Mill (4 x 1L) with optional Milling Jars - MSK-SFM-2-1 - Image 4

4L Capacity Planetary Ball Mill (4 x 1L) with optional Milling Jars - MSK-SFM-2-1

MSK-SFM-2-1 is a Planetary Ball Mill with a total of 4L capacity). Various milling jars are optional from 500ml to 1000 ml. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection, etc.

SPECIFICATIONS

Working Voltage	208 - 240V AC (single-phase), 50/60 Hz 750W power The 1500W transformer will be needed if operating at 110V 220V AC Power plug is not included. Please click here to order the plug).
Speed control	Digital controller by changing the frequency of three-phase AC motor
Rotary Rate & Centrifugal acceleration:	Main plate revolution: 35-335 rpm, Mixing tank self-rotation: 70- 670 rpm, Total Centrifugal acceleration:: 40 g
Digital display	Digital display of the speed in RPM/Hz Major platen's running time: 1- 3600 minutes adjustable Rest time: 1- 999 minutes adjustable anticlockwise rotation time: 1- 3600 minutes adjustable Suggested working time: 48 hours Max.
MillingTank (Jar)	The mill machine can carry 4 x 1000 ml jars. Please choose from the product bar The machine also can carry 4 x 500ml jars. Please click here to order Various 500ml jars The adaptor for a 500 ml jar is available Note: How to achieve finer or desired particles via ball mill is a research project, which is depended on the material to be mixed, grinding time and speed, combination of grinding jar and milling ball, etc. It is your responsibility to find the best milling procedure based on your material. Welcome you come to MTI lab at California to do a test before purchase
Optional	A larger ball mill with a 4x10L jar ( 40 L in total) is available upon request. PTFE and Stainless steel jars are available upon request Forced cold air to cool during milling is available at an extra cost
Material for milling	Max. input particle size: < 10mm for brittle material and < 3 mm for other materials Min output particle size: wet milling < 1 micron, and dry milling < 20 micron
Compliance	CE Certified NRTL certification is available at an extra cost

Product Information

Shipping & Returns

Description

MSK-SFM-2-1 is a Planetary Ball Mill with a total of 4L capacity). Various milling jars are optional from 500ml to 1000 ml. The product is extensively used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection, etc.

SPECIFICATIONS

Working Voltage	208 - 240V AC (single-phase), 50/60 Hz 750W power The 1500W transformer will be needed if operating at 110V 220V AC Power plug is not included. Please click here to order the plug).
Speed control	Digital controller by changing the frequency of three-phase AC motor
Rotary Rate & Centrifugal acceleration:	Main plate revolution: 35-335 rpm, Mixing tank self-rotation: 70- 670 rpm, Total Centrifugal acceleration:: 40 g
Digital display	Digital display of the speed in RPM/Hz Major platen's running time: 1- 3600 minutes adjustable Rest time: 1- 999 minutes adjustable anticlockwise rotation time: 1- 3600 minutes adjustable Suggested working time: 48 hours Max.
MillingTank (Jar)	The mill machine can carry 4 x 1000 ml jars. Please choose from the product bar The machine also can carry 4 x 500ml jars. Please click here to order Various 500ml jars The adaptor for a 500 ml jar is available Note: How to achieve finer or desired particles via ball mill is a research project, which is depended on the material to be mixed, grinding time and speed, combination of grinding jar and milling ball, etc. It is your responsibility to find the best milling procedure based on your material. Welcome you come to MTI lab at California to do a test before purchase
Optional	A larger ball mill with a 4x10L jar ( 40 L in total) is available upon request. PTFE and Stainless steel jars are available upon request Forced cold air to cool during milling is available at an extra cost
Material for milling	Max. input particle size: < 10mm for brittle material and < 3 mm for other materials Min output particle size: wet milling < 1 micron, and dry milling < 20 micron
Compliance	CE Certified NRTL certification is available at an extra cost
